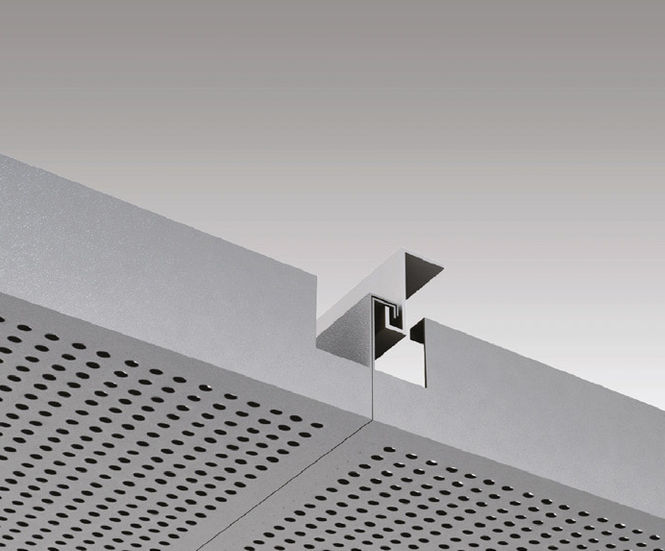

The TVS Hook-On acoustic concealed ceiling system is used for large spaces where there is a need for frequent access to the ceiling void, eg corridors. Panels are fully demountable with the help of a hooked grid profile suspending the aluminium or galvanised steel panels.This system enables the installation of larger panels from 300-2400mm.

  • Panel type: 0.5-0.7mm aluminium or galvanised steel

  • Panel size:
    - width from 300mm; length up to 2400mm
    - width from 600mm; length up to 1200mm

  • Grid system: concealed

  • Perforation: full perforated, 5-10cm bordered, non-perforated
    - Ø 1.0-1.5mm
    - Ø 1.8-2.5mm

  • Under acoustic felt: Local, Soundtex, Royalin, Lantor acoustic and non-flammable felt options

  • Certifications: CE

Applications

  • Transportation and airports

  • Educational

  • Healthcare

  • Hospitality and hotels

  • Commercial buildings

  • High-rise and offices

  • Financial and banking

  • Shopping centres

  • Residential
