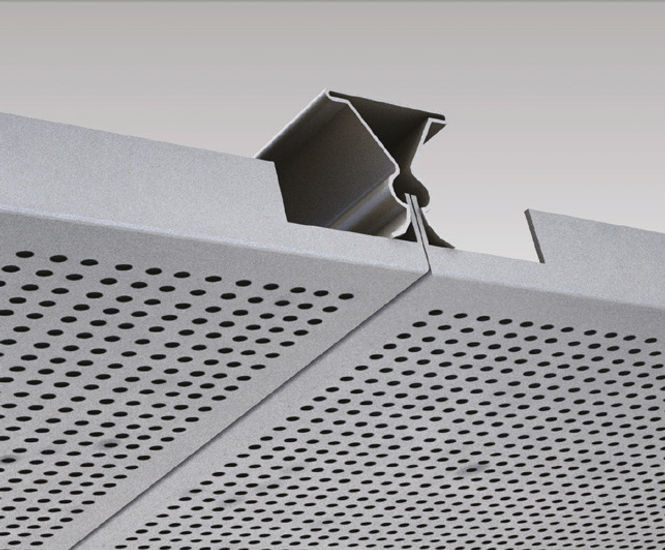

The TVS Acoustic Metal Clip-In ceiling tile system consists of a concealed supporting structure (spring tee) where demountable tiles can be clipped into the triangular omega main runner. The grid system is not visible and provides a more continuous look compared to a standard grid system.

Panels are singularly and independently demountable enabling easy and fast access to the ceiling void.

  • Panel type: 0.5-0.7mm aluminium or galvanised steel

  • Panel size:
    - width from 300mm; length up to 2400mm
    - width from 600mm; length up to 1200mm

  • Grid system: concealed

  • Perforation: full perforated, 5-10cm bordered, non-perforated
    - Ø 1.0-1.5mm
    - Ø 1.8-2.5mm

  • Under acoustic felt: Local, Soundtex, Royalin, Lantor acoustic and non-flammable felt options

  • Certifications: CE

Applications

  • Transportation and airports

  • Educational

  • Healthcare

  • Hospitality and hotels

  • Commercial buildings

  • High-rise and offices

  • Financial and banking

  • Shopping centres

  • Residential
