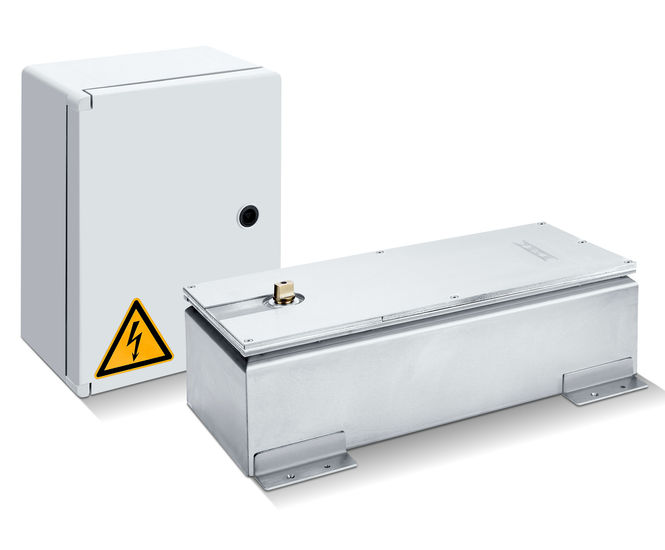

UFO NT is an electromechanical floor-mounted automatic swing door drive for single-leaf doors weighing up to 125kg.

Providing maximum transparency and meeting aesthetic and access demands, the UFO NT is hidden in the floor so overcomes problems of a limited area at the top of the door frame. It is suitable for use with glass facades, in listed or historical buildings with structural limitations, or where automatic doors are required but with a hidden operator.

Suitable for retrofitting, and compliant with the demands of the Equality Act and BS EN 8300, the UFO NT is a great automatic door solution.

Key features

  • Fully concealed under the floor

  • Fully adjustable opening and closing speed

  • Quieter than traditional overhead automatic operators

  • Extremely reliable and powerful operator

Suitability

  • Buildings where automatic doors are required but with an operator that is not visible

  • Can be used for any door type - glass, wood or metal

  • Suitable for use where vandalism could be a problem

  • Suitable for all types of buildings; existing or retrofittting

Technical data

  • Max door weight: 125kg

  • Max door width:
    - 1250mm on external doors
    - 1600mm width on internal doors

  • Minimum leaf width: 600mm

  • Max opening angle: 135°

  • Closing force: EN 1-4

  • IP rating: 67

  • Operator: encased in the fully-sealed stainless steel enclosure

  • Operator weight: 20kg

  • Enables compliance to the Equality Act and BS 8300
