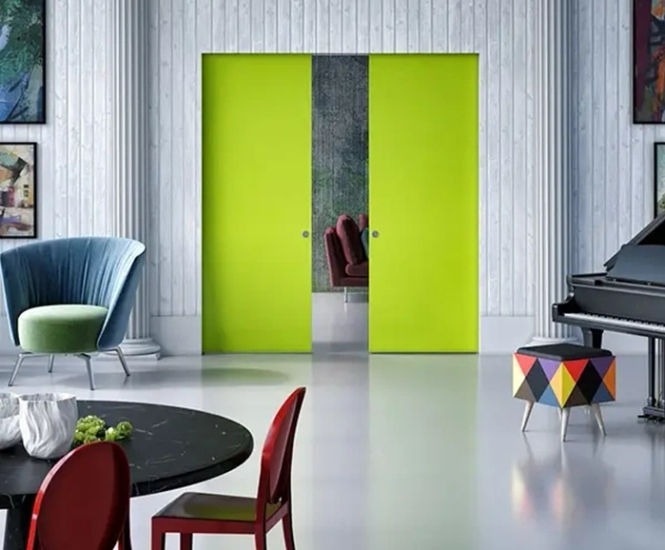

Evo Double Pocket Door Frame Kit is a sliding door system for standard size doors, designed to create a concealed, space-saving opening in interior walls with 100mm or 125mm finished thickness. Click-together frame allows straightforward installation and smooth operation for timber, metal, or glass panel doors.

  • Sliding pocket door kit for two standard doors
  • Click-together frame for easy assembly
  • Top-hung straight sliding system with soffit-fixed track
  • Compatible with timber, metal, or glass doors (glass kit required)
  • Maximum door weight 120kg (40kg with soft close)
  • Adjustable up to 10mm vertically
  • Optional soft close/open mechanism
  • Rollers tested to 100,000 cycles

Applications

Residential interiors

Commercial interiors

Space-saving door solutions

Drywall installations

Accessible design projects

Dimensions

610mm wide x 1981mm high

686mm wide x 1981mm high

762mm wide x 1981mm high

838mm wide x 1981mm high

726mm wide x 2040mm high

826mm wide x 2040mm high

926mm wide x 2040mm high

Door thickness 35mm–44mm

Finished wall thickness 100mm or 125mm

Options and variations

Available for 100mm or 125mm wall thickness

Optional soft close/open mechanism

Glass conversion kit for frameless glass doors

Performance

Maximum door weight 120kg (40kg with soft close)

Rollers tested to 100,000 cycles

Up to 10mm vertical adjustment

Installation

Click-together frame for simple assembly

Soffit-fixed track

Suitable for drywall installations

Kit includes all fixings and support framework
