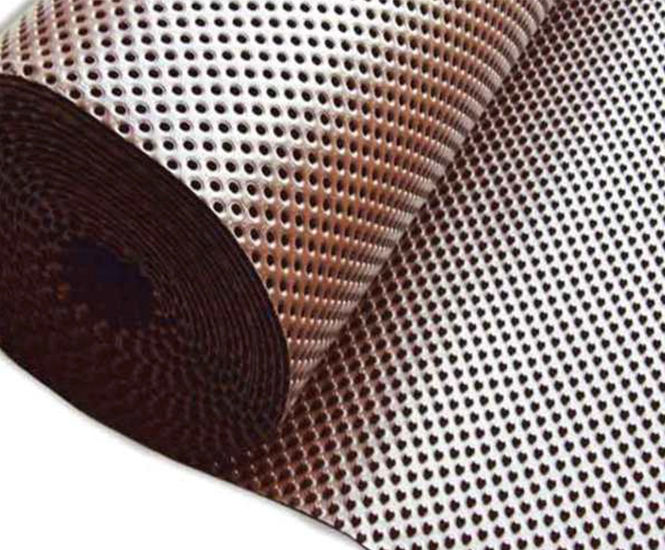

Delta AT 800 is an innovative Type C Drainage Membrane which conforms to BS 8102:2009 and BS 8485:2015+A1:2019, Table 7 achieving waterproofing and ground gas protection simultaneously.

Delta AT 800 offers maximum protection in just one application. Designed to offer drainage protection in Type C waterproofing (Grade 3 environment) in accordance with BS 8102:2009 this innovative membrane also offers barrier protection to ground gases Carbon Dioxide, Radon and Methane in accordance with BS 8485:2015 +A1:2019, Table 7 with high adhesion to the application of flame retardants.

Key Features

  • Rapid cost effective installation

  • Compatible with all types of construction

  • Ideal for complex substructures

  • Guaranteed performance

  • Suitable for new and existing buildings

  • Suitable for high volumes of water penetration

  • Suitable for ground gas protection

  • A reversible system, which will minimize damage to historical or heritage structures

  • An effective barrier to the transmission of salts, liquid water and water vapour

  • An effective barrier to gas – including Methane, CO2 and Radon

  • Durable for 100 years in natural soil with 4 = pH = 9 and soil temperature = 25 °C

Product Details

  • Product Code: DMS 026

  • Material: Virgin Polymer

  • Dimple Height: Approx 9mm EN 964

  • Air Gap Between Dimples: Approx 7.9mm

  • Contact Area Dimples/Surface: Approx 700 cm2/m2

  • Diagonal Dimples per M2: Approx 2.500 Pcs

  • Dimension of Rolls: 20 x 2.0 m EN 1848-2

  • Straightness: Pass <75 1/m2 EN 1848-2

  • Pressure Resistance: Approx 650 kPA EN ISO 25619-2

  • Resistance against Mechanical Perforation: Diameter Hole 13.4mm EN 918

  • Temperature Resistance: -30°C to +80°C

  • Methane Permeability: <31 (less than) ml/m2/day/atm EN ISO 15105-1

Delta AT 800 offers maximum protection in just one application. Designed to offer drainage protection in Type C waterproofing (Grade 3 environment) in accordance with BS 8102:2009 this innovative membrane also offers barrier protection to ground gases Carbon Dioxide, Radon and Methane in accordance with BS 8485:2015 +A1:2019, Table 7 with high adhesion to the application of flame retardants.

This Virgin Polymer profiled membrane with superior drainage capacity and compressive strength has been used in the construction of the Gothard tunnel and several stations of the Moscow Metro.
