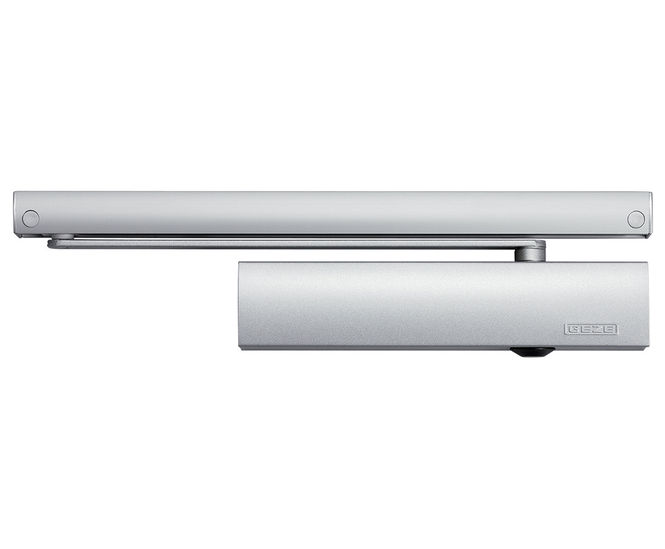

GEZE’s TS 5000 ECline overhead door closer with guide rail combines accessibility and convenience in one innovative all-round closer.

Providing barrier-free, easy-to-open doors the TS 5000 ECline is suitable for right and left single action doors with a door-leaf width of up to 1250mm. It also has integrated back check, hydraulic latching action, and the closing speed can be individually adjusted.

In addition, the closer offers flexibility in installation as it can be installed on the door leaf on the hinge side or on the transom on the opposite hinge side and all functions can be adjusted from the front of the closer. The L version can be mounted on the push side of the door.

It is part of the GEZE family of closers that have the same styling, perfect for when different closers are needed throughout a building, and it has the same fitting footprint as other GEZE closers allowing it to be fitted in place of other closers without having to re-drill the door.

With a closing force of EN 3-5 with variable adjustment the TS 5000 ECline is suitable for fire and smoke protection doors.

Key features

  • Closing force with variable adjustment from EN3-5

  • Operating voltage 24 V DC

  • Can be used for right and left hand doors without conversion

  • Electric hold-open device in the guide rail with hold-open area of 80°-130°

  • Smoke switch control unit can be connected, whose signal makes the door close automatically in the event of a fire

  • Hydraulic latching action which accelerates the door shortly before it is closed

  • Closing speed can be individually adjusted

  • Integrated back check, slows down doors that are thrown open forcefully

  • Visual closing force display for easy control of the setting

  • All functions can be adjusted from the front

Applications

  • Fire and smoke protection doors

  • Right and left single-action doors

  • Single-action doors up to 1250mm leaf width

  • Door leaf installation hinge side

  • Hold-open systems with integrated hold-open device

Technical details

  • Closing force in accordance with EN 1154 EN 3-5

  • Barrier-free in accordance with DIN 18040 up to max 1250mm leaf width

  • Type of installation - door leaf installation hinge side

  • Opening angle (max) 180°

  • Input voltage 24 V DC

  • Suitability for fire protection doors

  • Closing force adjustable - stepless

  • Adjustable closing speed

  • Latching action adjustable - valve

  • Position of closing force adjustment - front

  • Visual closing force display

  • Hold-open device - electrical

  • Hold-open range - 80-130°

  • Integrated smoke switch
