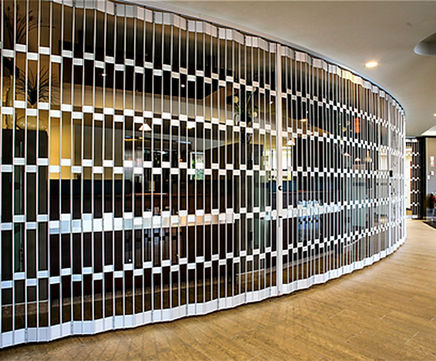

Product name System S-12 Sliding / Folding Grille
Operation Folding
Applications Bars, kiosks and receptions
Shop fronts / entrances
Material Aluminium
Grille pattern Brick bond




Distinctive, rugged and durable, the S-12 Sliding / Folding Grille combines some of the strength of the Concept model with the lightweight appearance of the S-126 folding grille system.

Curtain Construction

The top and bottom of each panel section is fitted with a 102mm high aluminium panel. This panel consists of an aluminium extrusion 2mm thick. It is connected into extruded hinge cleats with a 15° o set to facilitate folding. The curtain is constructed from 12mm aluminium tubes centred on a solid core which are connected across their span via a 75mm wide x 50mm high decorative plate. These plates are arranged in two different patterns giving the ‘S-525’ or ‘S-12’ models.

PLEASE NOTE – these are open grilles and can be accessible by arm/ hands.

Locking

Lock members are integral 50mm x 32mm standard extruded aluminium
hollow posts. They are at both ends of each grille, at intervals of 2500mm
maximum on full height doors and at 1500mm spacing (approx) on counter
tops. Additional posts to support curves as necessary. Lead posts incorprate
Adams Rite mortice locks operated by 5-pin cylinders on each side.
Intermediate posts incorporate drop bolts locating into ush oor sockets.
Drop bolts can be deadlocked with 5 pin cylinders.

Stacking

Allow 95mm per linear metre of System S-12 Sliding/ Folding grille, then add 76mm for each post member (lead, intermediate or end posts). Approximates to about 15% of System S-12 Sliding/ Folding grille length.

Finishes

Natural anodised or white, black light or medium bronze powder coat paint

Weight

6kg/m2


Distinctive, rugged and durable, the S-12 Sliding / Folding Grille combines some of the strength of the Concept model with the lightweight appearance of the S-126 folding grille system.

Curtain Construction

The top and bottom of each panel section is fitted with a 102mm high aluminium panel. This panel consists of an aluminium extrusion 2mm thick. It is connected into extruded hinge cleats with a 15° o set to facilitate folding. The curtain is constructed from 12mm aluminium tubes centred on a solid core which are connected across their span via a 75mm wide x 50mm high decorative plate. These plates are arranged in two different patterns giving the ‘S-525’ or ‘S-12’ models.

PLEASE NOTE – these are open grilles and can be accessible by arm/ hands.

Locking

Lock members are integral 50mm x 32mm standard extruded aluminium
hollow posts. They are at both ends of each grille, at intervals of 2500mm
maximum on full height doors and at 1500mm spacing (approx) on counter
tops. Additional posts to support curves as necessary. Lead posts incorprate
Adams Rite mortice locks operated by 5-pin cylinders on each side.
Intermediate posts incorporate drop bolts locating into ush oor sockets.
Drop bolts can be deadlocked with 5 pin cylinders.

Stacking

Allow 95mm per linear metre of System S-12 Sliding/ Folding grille, then add 76mm for each post member (lead, intermediate or end posts). Approximates to about 15% of System S-12 Sliding/ Folding grille length.

Finishes

Natural anodised or white, black light or medium bronze powder coat paint

Weight

6kg/m2
