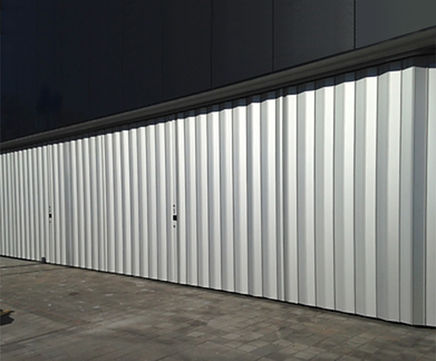

Global sliding / folding shutter with aluminium panels

The top and bottom of each panel section is fitted with a 102mm-high aluminum panel consisting of a 2mm-thick aluminium extrusion. It is connected into extruded hinge cleats with a 15% offcut to facilitate folding. The curtain is constructed of 152mm-wide modules linked together by a continous aluminium hinge. These hinges hold different curtain
