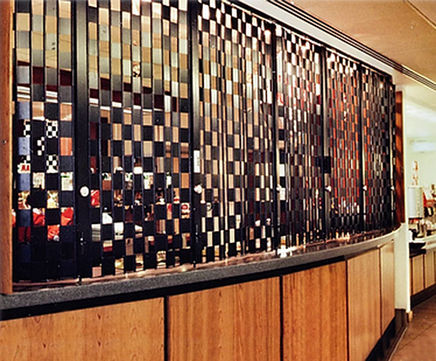

Product name Concept 33 Sliding/ Folding Grille
Operation Folding
Applications Bars, kiosks and receptions
Shop fronts / entrances
Material Aluminium




The Concept 33 Sliding/ Folding Grille widely specified for use in enclosed retail and public environments, including retail shopping centres, airport terminals, superstores, in-store concessions, countertops and bars, bank lobbies and ATM areas, kiosks, railway stations, ferries, ports, marinas, museums, schools and public buildings. In fact, wherever people and areas need to be seperated by a simple, secure screen system sliding shutter.

Curtain Construction

The top and bottom of each panel section is fitted with a 102mm high aluminium panel. This panel consists of an aluminium extrusion 2mm thick. It is connected into extruded hinge cleats with a 15° offset to facilitate folding. The curtain is constructed from 12mm aluminium tubes centred on a solid core which are connected across their span via 75mm decorative plates. The checker plate pattern is created by alternating the plates and spaces. PLEASE NOTE – these are open grilles and can be accessible by arm/ hands.

Stacking

Allow 95mm per linear metre of Concept 33, 66, 99 and 1212 Sliding Shutter, then add 76mm for each post member (lead, intermediate or end posts). Approximates to about 15% of Concept 33, 66, 99 and 1212 Sliding Shutter length.

Locking

Lock members are integral 50mm x 32mm standard extruded aluminium hollow posts. They are at both ends of each grille, at intervals of 2500mm maximum on full height doors and at 1500mm spacing (approx) on counter tops. Additional posts to support curves as necessary. Lead posts incorporate Adams Rite mortice locks operated by 5-pin cylinders on each side. Intermediate posts incorporate drop bolts locating into ush oor sockets. Drop bolts can be deadlocked with 5 pin cylinders.

Weight

8kg/m2


The Concept 33 Sliding/ Folding Grille widely specified for use in enclosed retail and public environments, including retail shopping centres, airport terminals, superstores, in-store concessions, countertops and bars, bank lobbies and ATM areas, kiosks, railway stations, ferries, ports, marinas, museums, schools and public buildings. In fact, wherever people and areas need to be seperated by a simple, secure screen system sliding shutter.

Curtain Construction

The top and bottom of each panel section is fitted with a 102mm high aluminium panel. This panel consists of an aluminium extrusion 2mm thick. It is connected into extruded hinge cleats with a 15° offset to facilitate folding. The curtain is constructed from 12mm aluminium tubes centred on a solid core which are connected across their span via 75mm decorative plates. The checker plate pattern is created by alternating the plates and spaces. PLEASE NOTE – these are open grilles and can be accessible by arm/ hands.

Stacking

Allow 95mm per linear metre of Concept 33, 66, 99 and 1212 Sliding Shutter, then add 76mm for each post member (lead, intermediate or end posts). Approximates to about 15% of Concept 33, 66, 99 and 1212 Sliding Shutter length.

Locking

Lock members are integral 50mm x 32mm standard extruded aluminium hollow posts. They are at both ends of each grille, at intervals of 2500mm maximum on full height doors and at 1500mm spacing (approx) on counter tops. Additional posts to support curves as necessary. Lead posts incorporate Adams Rite mortice locks operated by 5-pin cylinders on each side. Intermediate posts incorporate drop bolts locating into ush oor sockets. Drop bolts can be deadlocked with 5 pin cylinders.

Weight

8kg/m2
