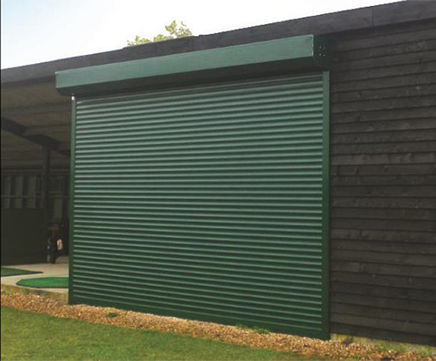

Product name SG55 Solid Aluminium Roller Shutter
Type Rolling
Applications Doorways
Shop fronts / entrances
Material Aluminium




SG55 Solid Aluminium Roller Shutter can be offered with counterbalanced spring & lock operation, or for those of a wider span or out of reach height we offer motorised operation with emergency manual over-rides. The SimFlex range includes high strength steel roller shutters up to 7m high, glazed models, using thick Lexan polycarbonate sheets, plastic linked grilles for bar tops, steel or aluminium tube and link brickbond grilles and perforated steel roller shutters.

SimFlex's range provides flexible solutions to storefront security and design.

Curtain Construction & Weight

55mm x 13.5mm twin walled solid extruded aluminium lath. Weight 8.44kg m2. ?

Bottom Bar & Guides

The bottom bar is 60mm x 8mm twin walled extruded aluminium with bottom rubber.
Guides for a 205mm box are 66mm x 27mm Extruded Aluminium construction including brush strips. Guides for 250mm, 300mm & 360mm box are 75mm x 27mm Extruded Aluminium construction including brush strips.

Shutter Hoods

Die cast aluminium end plates with a preformed 2-piece aluminium hood. Shutter hood ranges from 205mm to 250mm for a manual shutter and 205mm to 360mm for a motorised shutter, subject to size of the shutter.

Operation and Locking

Manual spring and lock operation with unique bottom lock for manual doors.
Motorised with tubular 220/240 volt single-phase motor with control options
including keyswitch, rocker switch, push button or remote radio control with a
hand-held transmitter, manual wind and brake.

Finishes/ Colour

Polyester powder-coated (PPC) to White RAL 9016 or Brown RAL 8019 as
standard or to any stocked BS or RAL colour at additional cost.

Applications

Medium to high level of security for retail and commercial premises. Ideal for
larger widths.
Suitable for internal or external use


SG55 Solid Aluminium Roller Shutter can be offered with counterbalanced spring & lock operation, or for those of a wider span or out of reach height we offer motorised operation with emergency manual over-rides. The SimFlex range includes high strength steel roller shutters up to 7m high, glazed models, using thick Lexan polycarbonate sheets, plastic linked grilles for bar tops, steel or aluminium tube and link brickbond grilles and perforated steel roller shutters.

SimFlex's range provides flexible solutions to storefront security and design.

Curtain Construction & Weight

55mm x 13.5mm twin walled solid extruded aluminium lath. Weight 8.44kg m2. ?

Bottom Bar & Guides

The bottom bar is 60mm x 8mm twin walled extruded aluminium with bottom rubber.
Guides for a 205mm box are 66mm x 27mm Extruded Aluminium construction including brush strips. Guides for 250mm, 300mm & 360mm box are 75mm x 27mm Extruded Aluminium construction including brush strips.

Shutter Hoods

Die cast aluminium end plates with a preformed 2-piece aluminium hood. Shutter hood ranges from 205mm to 250mm for a manual shutter and 205mm to 360mm for a motorised shutter, subject to size of the shutter.

Operation and Locking

Manual spring and lock operation with unique bottom lock for manual doors.
Motorised with tubular 220/240 volt single-phase motor with control options
including keyswitch, rocker switch, push button or remote radio control with a
hand-held transmitter, manual wind and brake.

Finishes/ Colour

Polyester powder-coated (PPC) to White RAL 9016 or Brown RAL 8019 as
standard or to any stocked BS or RAL colour at additional cost.

Applications

Medium to high level of security for retail and commercial premises. Ideal for
larger widths.
Suitable for internal or external use
