Product name PRO-OUTA-DOR
Fire rating (min) 120
240
60
Door leaf Mild steel
Operation Manual

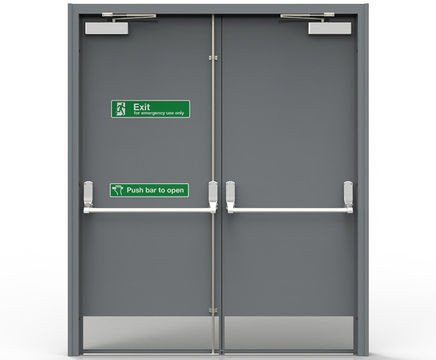

The PRO-OUTA-DOR is a CE Marked external steel fire door with a 10-year anti-corrosion guarantee. Custom made in the UK it is available with a third party fire certified fire rating up to 4 hours.

Delivered fully assembled this general-purpose external steel door is durable, versatile and cost effective. It is specified for use in a diverse range of residential, commercial and industrial applications including sheltered accommodation, schools, offices, multi-storey car parks and supermarkets.

Key featues and benefits

  • CE Marked to BS EN 14351-1 and EN 16034
  • Available as a fire rated doorset, tested to EN 1634 and CE marked as fire-resistant external doorsets
  • CERTIFIRE fire rating options for 60 minutes, 120 minutes and 240 minutes
  • Can be used as a fire exit door – when fitted with appropriate panic hardware to comply with BS EN 1125 and BS EN 179
  • Manufactured from corrosion resistant Magnelis© steel, offering a 10 year anti-corrosion guarantee with a standard PPC finish
  • Depending on construction and infill, thermal ‘u’ values of 3.2 - 1.6 w/m2k are obtainable
  • Made to measure
  • Range of vision panels available - double glazed as standard
  • Option for louvre panels, with 50% airflow as standard
  • Side and over panel arrangements can be supplied – solid, glazed, louvred, hinged, removable, flush
  • Wide range of lock options including mortice locks and latches, access control and panic escape hardware
  • Supplied fully assembled with hardware factory fitted, saving time on site
  • Adjustable fixing feet and variable sub-frame to ensure hassle free installation

Sizes

Doors are custom manufactured in 10mm increments – for single openings 690mm to 290mm and for double openings 1290mm to 2600mm, at heights up to 2900mm.

Finishes

All external steel doors are supplied with a choice of polyester powder coatings from Profab's standard PPC colour range.

Accreditation

  • Fire Testing: third party fire rated - Certifire Scheme Accredited up to 1hr, 2hr or 4hr
  • Quality: CNC manufactured to ISO 9001:2015
  • CE Marked: ested in accordance with health, safety, and environmental protection standards for products sold within the EEA
  • BS EN 14351-1:product standard, performance characteristics for windows and external pedestrian doorsets
  • EN 16034: fire resistance/smoke control tests for pedestrian doorsets
  • BS EN 1125: panic exit devices test on building hardware for the operation of a door from the inside in a panic situation
  • BS EN 179: emergency exit devices test on building hardware for the operation of a door from the inside in an emergency situation


The PRO-OUTA-DOR is a CE Marked external steel fire door with a 10-year anti-corrosion guarantee. Custom made in the UK it is available with a third party fire certified fire rating up to 4 hours.

Delivered fully assembled this general-purpose external steel door is durable, versatile and cost effective. It is specified for use in a diverse range of residential, commercial and industrial applications including sheltered accommodation, schools, offices, multi-storey car parks and supermarkets.

Key featues and benefits

  • CE Marked to BS EN 14351-1 and EN 16034
  • Available as a fire rated doorset, tested to EN 1634 and CE marked as fire-resistant external doorsets
  • CERTIFIRE fire rating options for 60 minutes, 120 minutes and 240 minutes
  • Can be used as a fire exit door – when fitted with appropriate panic hardware to comply with BS EN 1125 and BS EN 179
  • Manufactured from corrosion resistant Magnelis© steel, offering a 10 year anti-corrosion guarantee with a standard PPC finish
  • Depending on construction and infill, thermal ‘u’ values of 3.2 - 1.6 w/m2k are obtainable
  • Made to measure
  • Range of vision panels available - double glazed as standard
  • Option for louvre panels, with 50% airflow as standard
  • Side and over panel arrangements can be supplied – solid, glazed, louvred, hinged, removable, flush
  • Wide range of lock options including mortice locks and latches, access control and panic escape hardware
  • Supplied fully assembled with hardware factory fitted, saving time on site
  • Adjustable fixing feet and variable sub-frame to ensure hassle free installation

Sizes

Doors are custom manufactured in 10mm increments – for single openings 690mm to 290mm and for double openings 1290mm to 2600mm, at heights up to 2900mm.

Finishes

All external steel doors are supplied with a choice of polyester powder coatings from Profab's standard PPC colour range.

Accreditation

  • Fire Testing: third party fire rated - Certifire Scheme Accredited up to 1hr, 2hr or 4hr
  • Quality: CNC manufactured to ISO 9001:2015
  • CE Marked: ested in accordance with health, safety, and environmental protection standards for products sold within the EEA
  • BS EN 14351-1:product standard, performance characteristics for windows and external pedestrian doorsets
  • EN 16034: fire resistance/smoke control tests for pedestrian doorsets
  • BS EN 1125: panic exit devices test on building hardware for the operation of a door from the inside in a panic situation
  • BS EN 179: emergency exit devices test on building hardware for the operation of a door from the inside in an emergency situation
