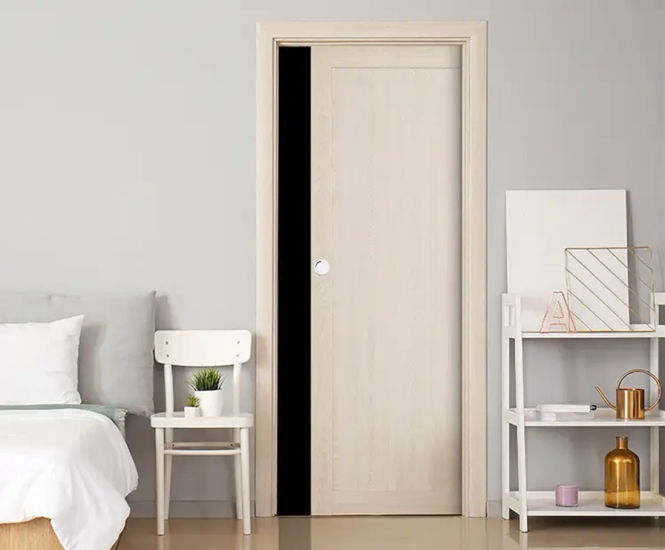

Glide – Adjustable Single Pocket Door Kit for Bespoke Size Doors is a soffit-fixed sliding door track system for interior pocket doors, adjustable to fit timber, metal, or glass doors from 608mm to 1200mm wide and up to 2400mm high, with optional soft close and open mechanisms.

  • Sliding pocket door kit for bespoke interior doors
  • Adjustable to fit a wide range of door sizes
  • Compatible with timber, metal, or glass doors using a glass conversion kit
  • Supports doors up to 90kg (80kg with soft close)
  • Optional soft close and open mechanisms for quieter operation
  • Up to 5mm vertical adjustment for precise fitting
  • Suitable for 4" stud walls with a finished wall thickness of 125mm

Applications

  • Residential interiors with limited space
  • Commercial office partitions
  • Hotel room entrances
  • En-suite bathrooms
  • Closets and storage areas
  • Accessible doorways

Dimensions

Door width 608mm – 1200mm

Door height up to 2400mm

Door thickness 35mm – 44mm

Maximum door weight 90kg (80kg with soft close)

Finished wall thickness 125mm

Options and variations

Glass conversion kit for frameless glass doors

Optional soft close and open mechanisms

Installation

Soffit fixed track

Kit includes top track, rollers, support studs, brackets, door guide, screws, buffer, and nails
