CUPACLAD® 101 PARALLEL rainscreen cladding system
CUPACLAD® 101 PARALLEL is a rainscreen cladding system with invisible fixings that makes natural slate the main feature of a facade. 40 x 25cm slates are fixed to a frame using two self-drilling stainless steel screws to produce a uniform and consistent layout that highlights the character of natural slate
Click for full image

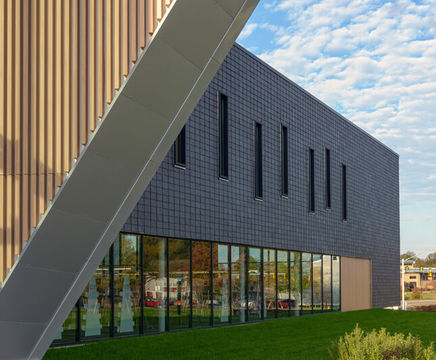

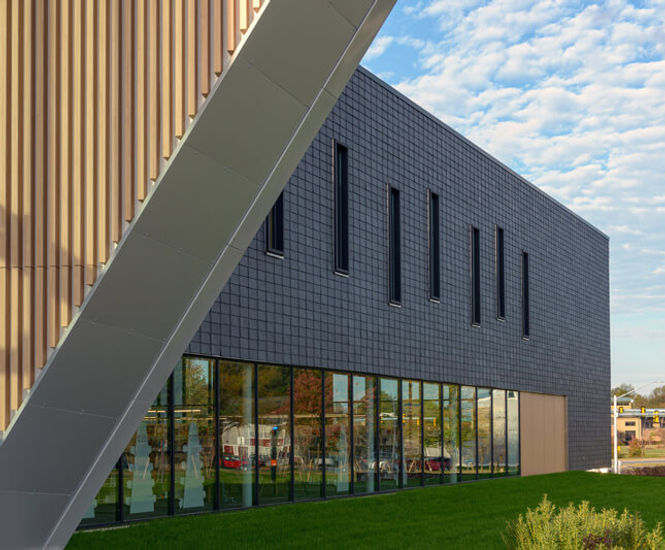

CUPACLAD 101 PARALLEL cladding system - Library, USA
CUPACLAD® 101 PARALLEL is a rainscreen cladding system with invisible fixings that makes natural slate the main feature of a facade.
40 x 25cm slates are fixed to a frame using two self-drilling stainless steel screws to produce a uniform and consistent layout that highlights the character of natural slate.
Slate rainscreen cladding system
Uniform layout using 40 x 25cm slates
Invisible fixings
Specifications
Slates per m2: 14.3
Slate weight (slate): =30kg/m2
Slate size: 40 x 25cm
Slate nominal thickness: 7.65mm
Fixings: invisible screws
Related products
CUPACLAD® 101 PARALLEL is part of the CUPACLAD® 101 series.
