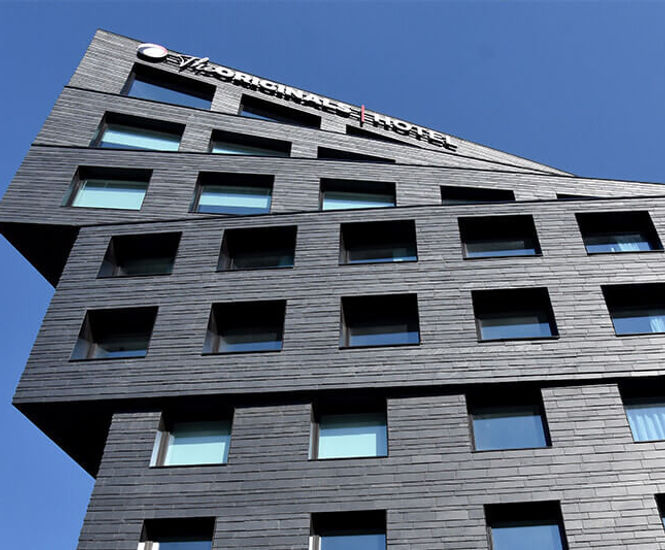

CUPACLAD® 101 RANDOM rainscreen cladding system combines 50 x 25, 50 x 20 and 50 x 15cm natural slate pieces in a horizontal layout with concealed stainless steel screws, creating a dynamic facade design with invisible fixings and a nominal thickness of 7.65mm.

  • Natural slate rainscreen cladding system with mixed slate sizes for creative facade layouts

  • Invisible fixings keep the focus on the slate surface

  • Uses self-drilling stainless steel screws with large flat heads for secure, concealed installation

  • Slates installed horizontally in three sizes: 50 x 25, 50 x 20, 50 x 15cm

  • Nominal slate thickness of 7.65mm

  • Weight per m2 up to 30kg

  • Approximate coverage of 15 slates per m2

Applications

  • Residential and commercial facades

  • Architectural projects seeking a natural slate finish

  • Rainscreen cladding for new builds or refurbishments

  • Creative exterior wall designs

Dimensions

Slate size: 50 x 25, 50 x 20, 50 x 15cm

Nominal thickness: 7.65mm

Weight: =30kg/m²

Slates per m²: ±15

Materials

Made from natural slate

Installation

Horizontal installation with self-drilling stainless steel screws concealed behind upper slates
