THERMOSLATE® FLAT has been developed to adapt the advantages of our solar thermal collector to any kind of external surface without specific needs for waterproofing.

The THERMOSLATE FLAT thermal solar panels are perfect for flat roofs, exterior floors and facades. The natural slate gives an exclusive and elegant finish.

The THERMOSLATE® technical solar floor system is ideal for any trafficable outdoor surface (suitable for people to walk on), giving the sophisticated, contemporary style characteristic of natural slate.

Components

The THERMOSLATE® technical solar floor system is made up of the collector panel, the inspection piece giving direct access to the connections and the non-collector panel, which facilitates full integration adapted to your needs.

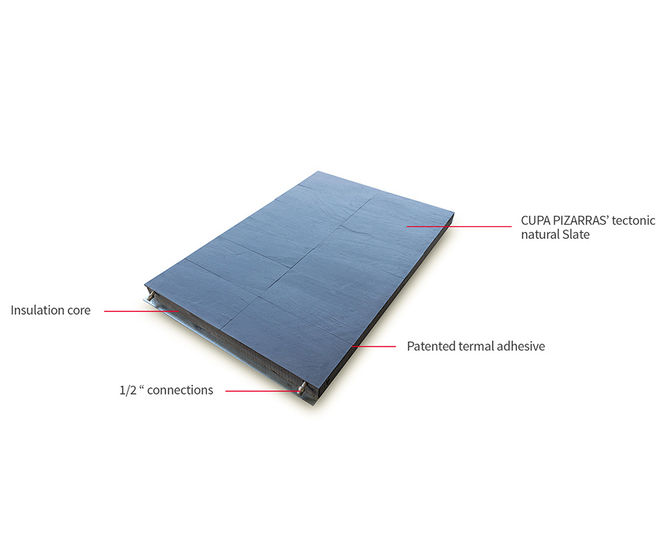

TSV6.4020P collector

  • External dimensions: 1260x800mm
  • Slate thickness: 5mm
  • Total area: 1.008m2
  • Total catchment area: 0.96m2
  • Quantity of fluid/m2: 0.44l

TSV6.4020P non-collector

  • External dimensions: 1260x800mm
  • Slate thickness: 5mm
  • Total area: 1.008m2

Inspection piece TSV6.4020P INT

  • External dimensions: 810x400
  • Slate thickness: 5mm
  • Total area: 0.324m2
