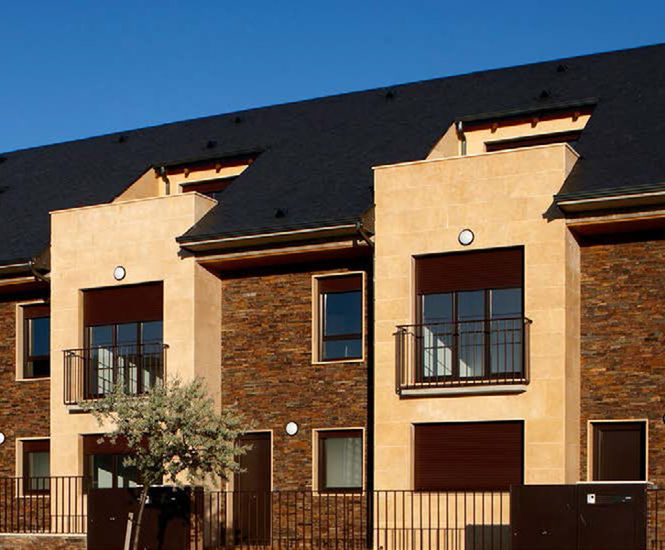

The THERMOSLATE® THS slate tile and hook system provides a perfect integration to roofs using 3.5mm-thick slates and traditional fixings, resulting in a natural slate roof which has less environmental impact and an innovative invisible solar system.

Compatible with the most widely used natural slate formats, 22cm wide and variable length, ensuring perfect adaptation of the solar thermal collector to any roof.

Allows completely undetectable integration of the thermal solar collectors into any traditional natural slate roof. The stainless steel hooks facilitate perfect fitting of each of the slates. This means that, as well as taking advantage of the sustainability of renewable energies, THERMOSLATE® enhances the natural beauty of slate roofs.

Models

THS.3222.S07

  • Slate format: 32x22cm
  • Overlap: 7cm
  • External dimensions: 2458x650x37cm
  • Total area: 1.6m2
  • Total catchment area: 1.19

THS.3222.S10

  • Slate format: 35x22cm
  • Overlap: 10cm
  • External dimensions: 2458x605x37cm
  • Total area: 1.48m2
  • Total catchment area: 1.12

THS.3222.S11

  • Slate format: 40x22cm
  • Overlap: 11cm
  • External dimensions: 2458x745x37
  • Total area: 1.83m2
  • Total catchment area: 1.41
