Sector Housing, private
Project type New build
Services provided Product / system supply
Year completed 2019
Project location London
Contractor Stonehouse Property Care
Products used Newton CDM System, Newton 508, Newton Basedrain, Newton 107F



Challenge

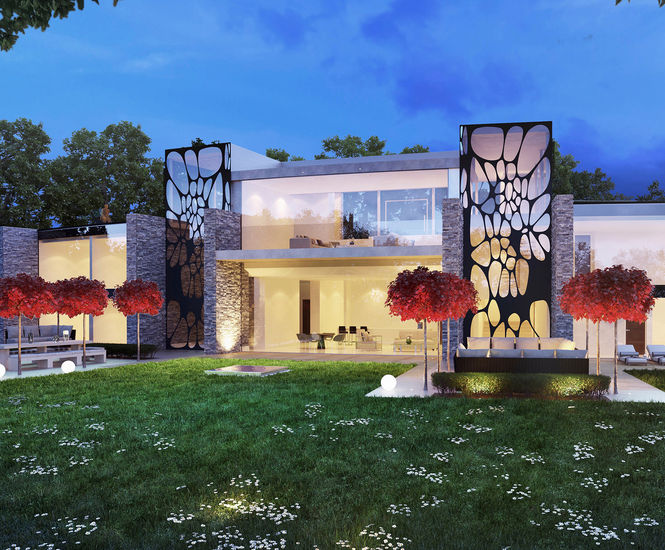

This stunning new-build with floor-to-ceiling glass panels is built into the hillside and required a robust waterproofing solution for failsafe protection.

After the original property on this site in Barnet was demolished, construction began for a new building that could take full advantage of the stunning location. With floor-to-ceiling glass panels on one side of the property, this new-build is the best place to admire the views over London.

Built into the hillside, the property was partially retaining and required a full waterproofing system throughout to protect from unwanted water ingress. Newton Specialist Contractor Stonehouse was called in to expertly install a robust waterproofing system to the entire structure.

Solution

The client appointed Stonehouse's Richard Allen as the waterproofing design specialist on this project, to ensure a fully BS 8102:2009 compliant build.

Due to the partially-retaining nature of the structure, Richard recommended a combination of Type A, B and C waterproofing systems to ensure a Grade 3 habitable environment. Relying on an effective Type B structure, Stonehouse then applied a cementitious coating of Type A Newton 107F to the external surface of the flat roof decks and to the internal area of the lower lift pit.

Given the high risk from water, the failsafe Newton CDM System was also installed on both levels of the structure. Newton 508 membrane was securely fixed to the internal walls using Newton's ancillary products, with water from the upper level being bunded and piped down to the lower level, then drained via gravity fall using Newton Basedrain.

Outcome

As one of Newton's most experienced specialist contractors, Stonehouse expertly recommended, designed and installed a truly failsafe waterproofing system that will continue to protect this contemporary home for many years to come. Furthermore, Stonehouse was able to provide a 10-year guarantee for the installation, for complete peace of mind.

Comment

"This was a challenging project from the start due to the complex construction of the building with different levels and a high risk of water ingress through construction joints, fully retaining elevations and external podium decks.

We had to combine a wide range of Newton's products in our design and installation to achieve a continual barrier and satisfy the requirements of both the client and main contractor whilst achieving a system that is in full compliance with BS 8102:2009."
– Richard Allen CSRT CSSW, Senior Surveyor, Stonehouse


Challenge

This stunning new-build with floor-to-ceiling glass panels is built into the hillside and required a robust waterproofing solution for failsafe protection.

After the original property on this site in Barnet was demolished, construction began for a new building that could take full advantage of the stunning location. With floor-to-ceiling glass panels on one side of the property, this new-build is the best place to admire the views over London.

Built into the hillside, the property was partially retaining and required a full waterproofing system throughout to protect from unwanted water ingress. Newton Specialist Contractor Stonehouse was called in to expertly install a robust waterproofing system to the entire structure.

Solution

The client appointed Stonehouse's Richard Allen as the waterproofing design specialist on this project, to ensure a fully BS 8102:2009 compliant build.

Due to the partially-retaining nature of the structure, Richard recommended a combination of Type A, B and C waterproofing systems to ensure a Grade 3 habitable environment. Relying on an effective Type B structure, Stonehouse then applied a cementitious coating of Type A Newton 107F to the external surface of the flat roof decks and to the internal area of the lower lift pit.

Given the high risk from water, the failsafe Newton CDM System was also installed on both levels of the structure. Newton 508 membrane was securely fixed to the internal walls using Newton's ancillary products, with water from the upper level being bunded and piped down to the lower level, then drained via gravity fall using Newton Basedrain.

Outcome

As one of Newton's most experienced specialist contractors, Stonehouse expertly recommended, designed and installed a truly failsafe waterproofing system that will continue to protect this contemporary home for many years to come. Furthermore, Stonehouse was able to provide a 10-year guarantee for the installation, for complete peace of mind.

Comment

"This was a challenging project from the start due to the complex construction of the building with different levels and a high risk of water ingress through construction joints, fully retaining elevations and external podium decks.

We had to combine a wide range of Newton's products in our design and installation to achieve a continual barrier and satisfy the requirements of both the client and main contractor whilst achieving a system that is in full compliance with BS 8102:2009."
– Richard Allen CSRT CSSW, Senior Surveyor, Stonehouse
