Sector Transport infrastructure
Project type Refurbishment
Services provided Product / system manufacture
Product / system supply
Project location Scotland
Client Caledonian Maritime Assets Limited
Consultant Norr of Glasgow
Contractor CMS Enviro Systems
Products used GEZE Slimchain drives, GEZE MBZ 300 two-zone control panel, GEZE Powerchain drives, GEZE OL Line manual opening systems, GEZE Slimdrive EMD-F operators, GEZE Slimdrive SL NT



Context

A new ferry terminal and community gateway to the Isle of Arran, designed by Architects Norr of Glasgow, has been fitted with a wide range of manual and electro-mechanical door and window operators supplied by GEZE UK. The development is part of a £30 million investment intended to upgrade the harbour and enhance passenger experience.

The redevelopment includes a longer and deeper two-berth pier and airport-style gangway – safer for passengers boarding and disembarking vessels. Land has been reclaimed to provide improved parking and traffic marshalling areas.

The terminal itself incorporates 1328 sq metres of space and has capacity for 400 passengers.

Products supplied

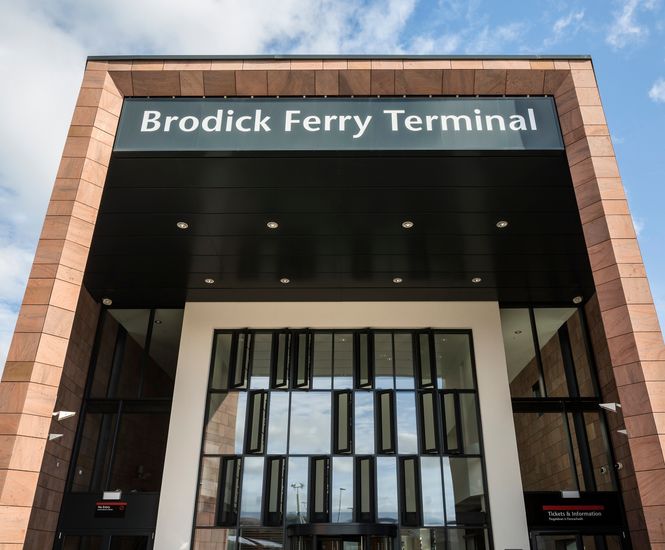

The terminal is ship-shaped and clad in sandstone. It sits near the water’s edge and is filled with natural light that pours through a wall of windows fitted to the ‘stern’ of its west elevation which are operated by 30 GEZE Slimchain drives.

They provide the light and spacious feel to the building’s main entrance which opens out into a reception area. The Slimchain drives a natural ventilation system facilitated by a GEZE MBZ 300 two-zone control panel, which is integrated into the terminal’s building management system (BMS).

These have been placed throughout the two-storey building including in the departure lounge, alongside the GEZE Powerchain drives on the upper vents that were chosen to operate the larger windows. The lounge benefits from a double-height room with stunning views across Brodick Bay.

Stairwells were also fitted with Slimchain drives alongside GEZE OL Line manual opening systems to enable natural smoke and heat ventilation if required, and to give additional natural ventilation.

Beneath the glazed western elevation are two automatic swing doors to either side. These are powered by GEZE Slimdrive EMD-F operators - electro-mechanical drives that are extremely versatile, providing easy access for those with mobility issues. They provide power assisted opening and can be initiated using the operating button with guaranteed constant opening and closing speed. At just 7cm high, the Slimdrive EMD-F operators are extremely discreet and sit neatly on the door frame. They offer a low-wear, hi-performance system which is exceptionally quiet in operation.

A further Slimdrive EMD-f was fitted to one of the side elevations of the building.

From the main entrance, accessed by its pass doors, a glazed corridor leads to a bi-parting sliding door powered by a GEZE Slimdrive SL NT operator, which leads into the foyer of the main reception area. With a height of just 7cm, Slimdrive SL NTs are almost invisible, virtually silent in operation and can move leaf weights of up to 125kg. They are ideal for buildings with high levels of footfall and a continuous flow of people heading in and out of the building.

Comments

Andy Howland, GEZE UK’s Director of Sales & Marketing, said: "This was a fascinating project with which to be involved. Many GEZE products were used throughout the build and much thought was given from the outset to making this an intelligent functional building geared up for the future, whilst embracing the natural environment in which it sits."


Context

A new ferry terminal and community gateway to the Isle of Arran, designed by Architects Norr of Glasgow, has been fitted with a wide range of manual and electro-mechanical door and window operators supplied by GEZE UK. The development is part of a £30 million investment intended to upgrade the harbour and enhance passenger experience.

The redevelopment includes a longer and deeper two-berth pier and airport-style gangway – safer for passengers boarding and disembarking vessels. Land has been reclaimed to provide improved parking and traffic marshalling areas.

The terminal itself incorporates 1328 sq metres of space and has capacity for 400 passengers.

Products supplied

The terminal is ship-shaped and clad in sandstone. It sits near the water’s edge and is filled with natural light that pours through a wall of windows fitted to the ‘stern’ of its west elevation which are operated by 30 GEZE Slimchain drives.

They provide the light and spacious feel to the building’s main entrance which opens out into a reception area. The Slimchain drives a natural ventilation system facilitated by a GEZE MBZ 300 two-zone control panel, which is integrated into the terminal’s building management system (BMS).

These have been placed throughout the two-storey building including in the departure lounge, alongside the GEZE Powerchain drives on the upper vents that were chosen to operate the larger windows. The lounge benefits from a double-height room with stunning views across Brodick Bay.

Stairwells were also fitted with Slimchain drives alongside GEZE OL Line manual opening systems to enable natural smoke and heat ventilation if required, and to give additional natural ventilation.

Beneath the glazed western elevation are two automatic swing doors to either side. These are powered by GEZE Slimdrive EMD-F operators - electro-mechanical drives that are extremely versatile, providing easy access for those with mobility issues. They provide power assisted opening and can be initiated using the operating button with guaranteed constant opening and closing speed. At just 7cm high, the Slimdrive EMD-F operators are extremely discreet and sit neatly on the door frame. They offer a low-wear, hi-performance system which is exceptionally quiet in operation.

A further Slimdrive EMD-f was fitted to one of the side elevations of the building.

From the main entrance, accessed by its pass doors, a glazed corridor leads to a bi-parting sliding door powered by a GEZE Slimdrive SL NT operator, which leads into the foyer of the main reception area. With a height of just 7cm, Slimdrive SL NTs are almost invisible, virtually silent in operation and can move leaf weights of up to 125kg. They are ideal for buildings with high levels of footfall and a continuous flow of people heading in and out of the building.

Comments

Andy Howland, GEZE UK’s Director of Sales & Marketing, said: "This was a fascinating project with which to be involved. Many GEZE products were used throughout the build and much thought was given from the outset to making this an intelligent functional building geared up for the future, whilst embracing the natural environment in which it sits."
