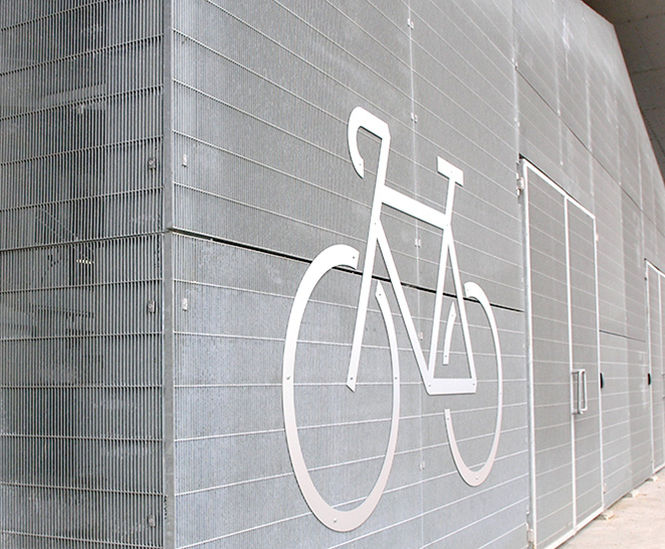

Stretto architectural grating is made from electrofused, pressure-locked steel with closely spaced horizontal bars. It is designed for balustrades, ceiling panels and partial screening where visual screening and through-visibility are needed. Panels are custom-sized, framed, hot dip galvanised, and can be finished in any RAL colour.

  • Architectural grating with a distinctive lateral emphasis and partial screening effect

  • Custom panel sizes to suit project requirements

  • Mesh sizes with horizontal bar centres at 11, 22, 33 or 44mm

  • Hot dip galvanised finish with optional polyester powder coating

  • Pressure-locked intersections for precise, high-quality appearance

  • Suitable for both interior and exterior use

Applications

  • Balustrading

  • Ceiling panels

  • Balcony screening

  • Architectural facades

  • Residential interiors

  • Partial visual screening

Dimensions

Vertical bar: 25 x 2mm or greater

Horizontal bar: 10 x 2mm

Mesh sizes (centre to centre): 132 x 11, 132 x 22, 132 x 33, 132 x 44mm

Materials

Steel

Colours

Any RAL colour (polyester powder coated)

Finish

Hot-dip galvanised

Optional polyester powder coating

Options and variations

Panel types with horizontal bar spacings at 11, 22, 33, or 44mm centres

Additional mesh sizes on request

Manufacture

Electrofused, pressure-locked process
