Newton Newtonite is a BBA certified,Non-Meshed high quality damp proof membrane for use above ground. It is used as an alternative to Newtonite Lath Mesh Membranes where a meshed surface is not required as a surface for direct plastering or rendering - typically where the wall finish to the damp proof membrane is timber battens, a dry-lining frame or block wall.

  • Isolates wall finish from the damp wall

  • Does not require extensive and damaging preparation to the wall surface

  • Quick to install

  • Resistant to efflorescing salts and hydrocarbon contamination

  • Rot-proof

  • Shallow stud profile for where space is at a premium

Applications

As a damp-proof membrane to isolate the wall finish from the damp wall where a meshed surface for plaster or render is not required.

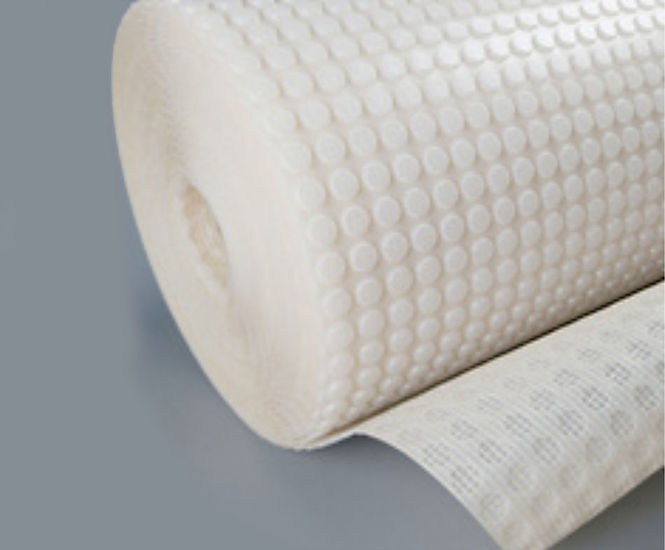

Newtonite 803 Membrane (Non-Meshed) is typically used where the wall finish to the damp-proof membrane is timber battens, a dry-lining frame or block wall. Newtonite 803 Membrane (Non-Meshed) is 0.5mm thick and has a pattern of raised 3mm studs. The studs face the wall and create air channels that allow for vapour equalisation to take place between the membrane and the wall.

Dimensions

Roll 2m x 20m = 40m2 (M20)

Properties

Newtonite 803 Membrane (Non-Meshed) is light, clean and easy to handle. It can be cut with a sharp knife, scissors or shears. The membrane is inert and is highly resistant to water, alkalies, saline solutions and organic acids, and it is not affected by minerals. It is also resistant to bacteria, fungi and other small organisms.

Guarantee

Newtonite 803 Membrane (Non-Meshed) is guaranteed against deterioration for 30 years, and has a life expectancy of at least 50 years (DIN 9001:2000) and is supported by BBA Certification Number 94/3010.
