Stainless steel floor gratings - Chelsea Bridge apartments
Lang+Fulton was approached by the architects of the new Vista apartments near Chelsea Bridge to propose a suitable stainless steel grating for pedestrian use, which would ventilate the structural openings to the underground car park. A grating with a heel-proof mesh of 55 x 11mm was recommended and was designed with support beams and anchor bolts. An additional 31m2 of mild steel grating in
Click for full image

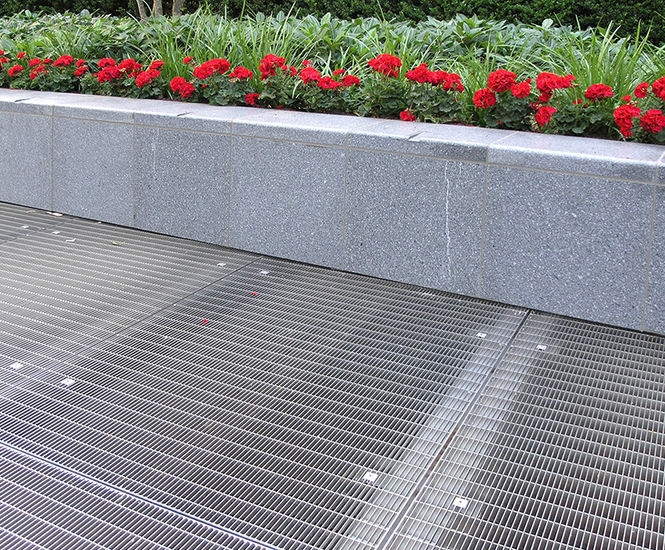

Stainless steel floor grating matches the quality of the polished granite and planting
Lang+Fulton manufactured and supplied metal floor and ventilation gratings for the Vista apartments, located close to Chelsea Bridge and overlooking Battersea Park in London. The extensive landscaping was given a high priority, appropriate for such a high-end residential project.
Products supplied
Lang+Fulton was approached by the architects to propose a suitable stainless steel grating for pedestrian use, which would ventilate the structural openings to the underground car park. A grating with a heel-proof mesh of 55 x 11mm was recommended and was designed with support beams and anchor bolts. The stainless steel was pickled and polished.
An additional 31m2 of mild steel grating in a galvanised finish with a 66 x 33mm mesh was supplied for an area which was inaccessible to the public.
