Application Wall and ceiling
Main material Glass fibre
Fire rating BS 476-7, Class 0
Noise Reduction Coefficient 1.00
Sound Absorption Class A
Dimensions (l x w x d) Baffles: 1200 x 300 x 40mm / 1200 x 600 x 40mm Rafts: 1200 x 600 x 40mm / 2400 x 1200 x 40mm




TVS ABSorb Switch are white painted fiberglass acoustic baffles and rafts. The paints are high-pressure sprayed to the surface, with a high adhesion and sealed edges. They are very effective against airborne dust absorption so that the products maintain a clean indoor environment.

Key features

  • Class A absorption rating
  • Can be suspended vertically or horizontally from the soffit
  • Can also be fixed directly to a surface

Dimensions

  • Baffles: 1200 x 300 x 40mm / 1200 x 600 x 40mm
  • Rafts: 1200 x 600 x 40mm / 2400 x 1200 x 40mm

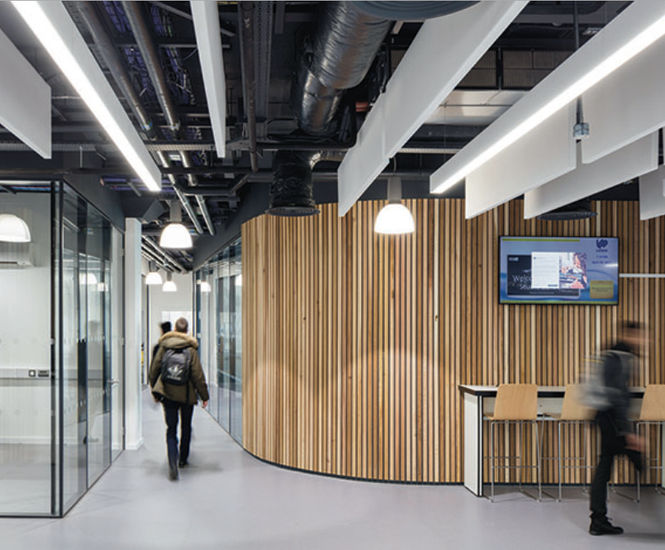

Ideal for use in commercial or education environments where Class A absorption is required or where an exposed concrete soffit is being used instead of suspended ceilings – such as offices, boardrooms, classrooms, halls and atrium areas.


TVS ABSorb Switch are white painted fiberglass acoustic baffles and rafts. The paints are high-pressure sprayed to the surface, with a high adhesion and sealed edges. They are very effective against airborne dust absorption so that the products maintain a clean indoor environment.

Key features

  • Class A absorption rating
  • Can be suspended vertically or horizontally from the soffit
  • Can also be fixed directly to a surface

Dimensions

  • Baffles: 1200 x 300 x 40mm / 1200 x 600 x 40mm
  • Rafts: 1200 x 600 x 40mm / 2400 x 1200 x 40mm

Ideal for use in commercial or education environments where Class A absorption is required or where an exposed concrete soffit is being used instead of suspended ceilings – such as offices, boardrooms, classrooms, halls and atrium areas.
