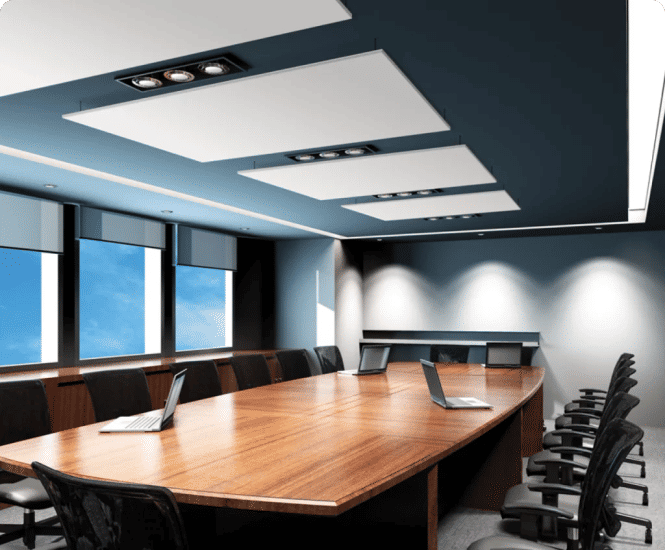

Quietsorba Acoustic Panels are high performance Class A sound absorbing panels made for wall and ceiling installation. Panels are pre-finished in white as standard. Class 0 fire rating is achieved for compliance with building regulations.

  • High performance sound absorbing panels for walls and ceilings

  • Class A sound absorption (90–100% across a range of frequencies)

  • Class 0 fire-rated for safety and regulatory compliance

  • Pre-finished in white with option for colour customisation

  • Panels can be repainted with water-based matt emulsion without affecting performance

Applications

  • Schools

  • Offices

  • Hospitals

  • Leisure centres

  • Community halls

  • Music and TV studios

  • Churches

  • Restaurants

Product spec

Standard Sizes (mm)

2400 x 1200 x 40, 1200 x 1200 x 40, 600 x 1200 x 40

Circle Panels (mm)

1200 diameter x 40, 800 diameter x 40

Weight (kg/m²)

4

Acoustic Class

Class A

NRC direct fixed

see table below

NRC 100mm air gap

see table below

Fire Rating

Class 0

Finish

White speckled ecopaint (RAL 9016 standard); can be emulsion spray painted on site

Standard Colours

Light Ivory RAL 1015, Pastel Blue RAL 5024, Pale Green RAL 6021, Traffic Grey RAL 7042, Pale Brown RAL 8025

Fixing

Wall: impaling clips and Gluesorba adhesive. Ceiling: spiral hooks and adjustable 2m cable

Tolerance

+/- 3.0mm

Acoustic performance

125 Hz

250 Hz

500 Hz

1000 Hz

2000 Hz

4000 Hz

Direct fixed

0.25

0.70

0.95

1.00

1.00

1.00

100mm air gap

0.55

0.90

1.00

1.00

1.00

1.00

Finish

White speckled painted finish on all faces and edges

Colours

Standard white RAL 9016

Can be spray painted on site to any colour

Installation

Ceiling installation with spiral hooks and steel wires

Wall installation with impaling clips and contact spray adhesive

Can be fixed direct to concrete, brickwork, wood, plaster, or metal surfaces

Maintenance

Panels can be repainted with water-based matt emulsion in a light mist spray coat
