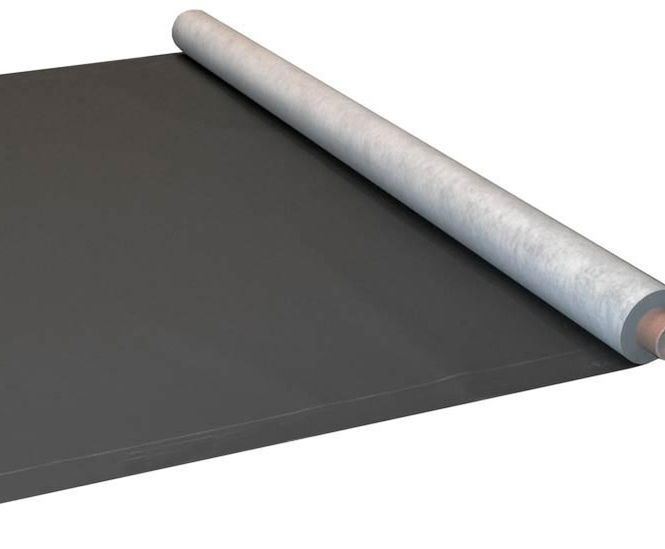

Façadeshield UV is a vapour control layer designed to ensure the building fabric maintains good water resistance and breathability behind open-jointed cladding.

It is a non-woven breathable membrane that combines water resistance and UV resistance with an aesthetically-pleasing dark colour to provide a 'shadow' appearance within open rainscreen façades.

Façadeshield UV enhances the airtightness of the building whilst reducing the risk of condensation due to its high vapour permeability, yet airtight fabric.

To protect the membrane from mechanical damage, the joint openings in the façade covering have to be less than 30% of the area, and maximum 30mm wide*.

Key features

  • Open jointed façades

  • UV-stabilised

  • Easy to cut

  • Anti-glare

  • Exceptional UV resistance

  • Airtight yet highly vapour-permeable

  • Highly water-resistant

  • Robust with good tear resistance and tensile strength

  • CE Mark

Specifications

  • Roll size: 1.5 x 50m

  • Material: polyester spunbond with coating (PET)

Technical properties

  • Mass per unit area: to be no less than 210g/m²

  • Water vapour resistance: to be no greater than Sd = 0.04m when tested to EN12572

  • Reaction to fire: to be no worse than Class B-s1,d0 when tested to EN 13501, free-hanging

  • Water penetration: to be no less than Class W1, unaged and aged, when tested to EN 1928

  • Tensile strength: to be no less than MD 290N; CD 190N, 5000hr aged, when tested to EN 12311-1

  • Tear resistance: to be no less than MD 120 N; CD 120 N when tested to EN 12310-1

  • Elongation: to be no less than MD 20%; CD 20%, 5000hr aged, when tested to EN 13859-2

  • UV resistance during construction: to be no less than 12 months (climate - central Europe)
