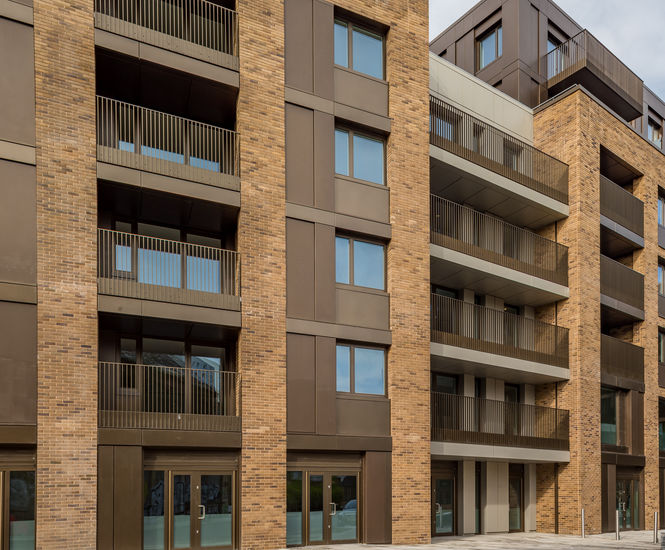

The B50 vertical bar balustrade is a modular and lightweight balcony system for residential and commercial developments. It is a side-mounted flat bar balustrade system designed for balconies or terraces, and incorporates a balcony fascia plate to provide a complete solution that minimises co-ordination challenges with other trades and contractors.

  • Open, light, modular system

  • Vertical bars provide privacy

  • Each bar fixed to fascia plate with concealed fixings

  • Aluminium powder-coated finish - less susceptible to corrosion than steel, or anodised finish

  • Fast to install, weld-free: facia side mount or post surface mount

  • Lighter than solid welded steel systems

  • Load-tested to meet a 0.74kN/m loading

  • Flat continuous edge to integrate with site waterproofing strategy

System details

Privacy

With 50mm or 70mm aluminium vertical flat bars that enhance privacy without blocking out too much light

Lightweight strength

The B50's contemporary design has been structurally engineered for durability and strength, and it offers a lighter weight alternative to traditional solid welded steel so that it reduces imposed loads on balcony structures.

Quicker handling

Fast to handle and quick to install, the B50 with its wide vertical bars (70/50mm x 12mm) will create the perfect balcony in residential and commercial developments.

Robust finishes

Available in a wide range of aluminium powder-coated finishes which are less susceptible to corrosion than traditional steel.

Flexible

B50 is manufactured off-site and then delivered in modules. This system incorporates the bars and balcony fascia plate to provide a complete solution that minimises coordination challenges with other trades and contractors. Then each vertical bar is simply fixed firmly to the folded fascia plate with concealed fittings for the ultimate in contemporary style.
