Don & Low




Suitability Cold roofs
Warm roofs
Product accreditation BBA certified
Tensile strength (N/5cm) Before ageing: MD 390 N (- 80 N), CD 230 N (- 60 N); after ageing: MD 330 N (- 80 N), CD 190 N (- 60 N)
Roll size (w x l) 50m x 1.0m

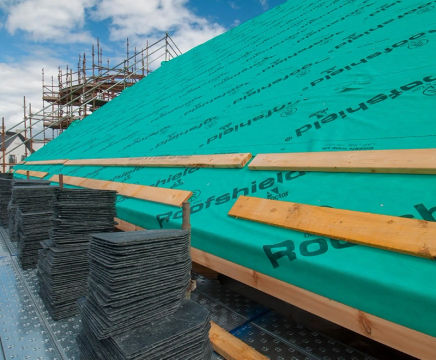

Roofshield®, launched in 1996, is a unique, three-layer, polypropylene spunbond nonwoven, with a patented Meltblown core.

Designed specifically as a low resistance (LR), vapour and air permeable roofing underlay, Roofshield® allows the passage of moisture to significantly reduce the incidence of interstitial condensation in pitched roofs.

In cold pitched roofs, when Roofshield® is installed there’s no need to ventilate the roof space, as the vapour and air permeability allows moisture to diffuse through the underlay. Roofshield® is also Agrement certified by BBA in the UK for use in unventilated cold and warm pitched roofs, which makes the product suitable for fully supported or unsupported roofing applications and can also be used in conventional ventilated roof construction.

In line with guidelines and a statement issued by the NHBC, independently certified air and vapour permeable underlays can be used without additional ridge ventilation in both cold and warm roofs. The use of Roofshield® vapour and air permeable membrane leads to savings in both labour and material costs.

Roofshield® provides a superior secondary barrier for roofs to protect against the ingress of rain, wind and snow, providing the most cost-effective solution to controlling interstitial condensation in a pitched roof.

In the UK and Republic of Ireland this product is distributed by A Proctor Group.

Benefits

  • Low vapour resistance
  • Air permeable
  • Eliminates low- and high-level ventilation
  • No vapour control layer required
  • Protects against wind-driven rain, snow and dust

Main applications

  • Roofing membranes
  • Vapour permeable underlays


Roofshield®, launched in 1996, is a unique, three-layer, polypropylene spunbond nonwoven, with a patented Meltblown core.

Designed specifically as a low resistance (LR), vapour and air permeable roofing underlay, Roofshield® allows the passage of moisture to significantly reduce the incidence of interstitial condensation in pitched roofs.

In cold pitched roofs, when Roofshield® is installed there’s no need to ventilate the roof space, as the vapour and air permeability allows moisture to diffuse through the underlay. Roofshield® is also Agrement certified by BBA in the UK for use in unventilated cold and warm pitched roofs, which makes the product suitable for fully supported or unsupported roofing applications and can also be used in conventional ventilated roof construction.

In line with guidelines and a statement issued by the NHBC, independently certified air and vapour permeable underlays can be used without additional ridge ventilation in both cold and warm roofs. The use of Roofshield® vapour and air permeable membrane leads to savings in both labour and material costs.

Roofshield® provides a superior secondary barrier for roofs to protect against the ingress of rain, wind and snow, providing the most cost-effective solution to controlling interstitial condensation in a pitched roof.

In the UK and Republic of Ireland this product is distributed by A Proctor Group.

Benefits

  • Low vapour resistance
  • Air permeable
  • Eliminates low- and high-level ventilation
  • No vapour control layer required
  • Protects against wind-driven rain, snow and dust

Main applications

  • Roofing membranes
  • Vapour permeable underlays
