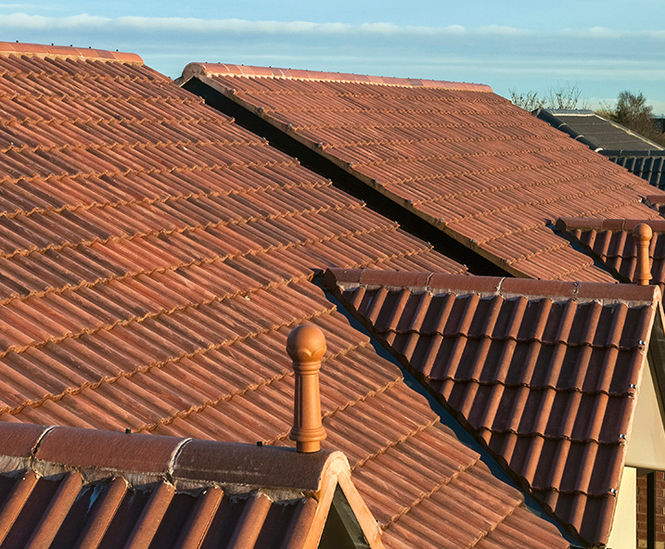

Double Roman Concrete Roof Tile by Marley is a concrete interlocking roof tile range with a classic Double Roman profile, designed for pitched roofs. Made from concrete, these tiles are compatible with full roof systems and solar panels, and are available in a choice of colours and finishes.

  • Concrete interlocking roof tile range with Double Roman profile for pitched roofs

  • Minimum pitch of 22.5° for smooth finish, higher for granular finish

  • High coverage rate, requiring fewer tiles per m²

  • Compatible with Marley SolarTile®

  • Open gauge design for faster installation

  • Available in seven colours and two finishes

  • 15 year guarantee with complete Marley Roof System

  • A+ BREEAM rating and BES 6001 certification

Applications

  • Residential pitched roofing

  • New build housing developments

  • Roof refurbishment projects

  • Projects requiring solar panel integration

  • Roofs with planning requirements for traditional profiles

Dimensions

  • Tile size 420mm x 330mm

  • Cover width 300mm (nominal)

  • Hanging length 397mm (nominal)

  • Covering capacity 9.7–10.4 tiles/m²

  • Weight 44–47kg/m²

Performance

  • Minimum pitch 22.5° (smooth, 100mm headlap)

  • Maximum pitch 90°

  • Minimum headlap 75mm (pitch and surface dependent)

  • Maximum gauge 345mm

Materials

Made from concrete

Colours

Antique Brown, Dark Red, Mosborough Red, Old English Dark Red, Smooth Brown, Smooth Grey

Finish

Available in smooth and granular finishes

Installation

Open gauge design for quick installation

Batten size 38x25mm (rafters up to 450mm centres), 50x25mm (rafters up to 600mm centres)

Tile nails 65mm x 3.35mm

Fixing clips for eaves, verges, and tiles

Accreditations

A+ BREEAM rating

BES 6001 certification

Warranty

15 year guarantee with complete Marley Roof System

Sustainability

A+ environmental credentials (BREEAM)
