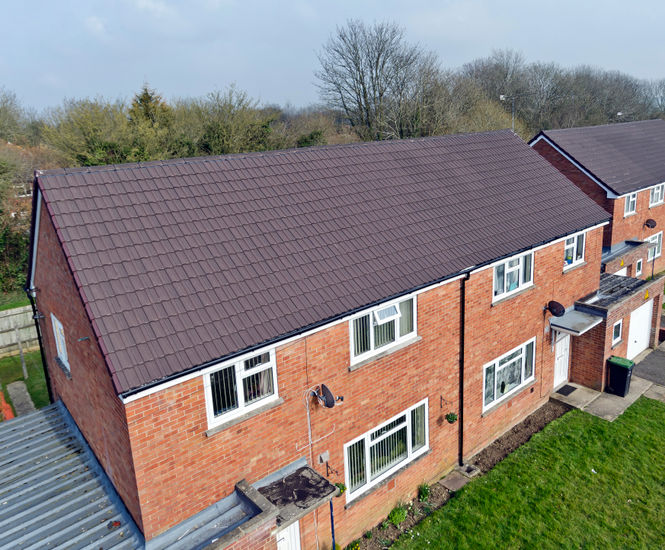

Ludlow Major is a concrete interlocking roof tile with a strong linear profile. Suitable for pitches as low as 22.5°, it is available in smooth and granular finishes and a variety of colours, for both aesthetic and functional requirements.

  • Concrete interlocking roof tile with a distinctive profile

  • Compatible with Marley SolarTile® and full roof system

  • A+ rating in BRE Green Guide and BES 6001 certified

  • Wide colour range and two finish options

  • Minimum pitch of 22.5° for smooth finish

  • Cost-effective and suitable for refurbishment

  • 15 year guarantee with full roof system

Applications

  • Residential roofing

  • Refurbishment projects

  • New build developments

  • Low pitch roof applications

  • Projects requiring environmental credentials

Dimensions

  • Tile size 420mm x 330mm

  • Cover width 295mm (nominal)

  • Maximum gauge 345mm

  • Covering capacity 9.8–10.6 tiles/m²

  • Weight 45–49kg/m²

Performance

  • Minimum pitch 22.5° (smooth, 100mm headlap)

  • Maximum pitch 90°

  • Minimum headlap 75mm

Materials

Made from concrete

Colours

Antique Brown, Dark Red, Mosborough Red, Old English Dark Red, Smooth Brown, Smooth Grey

Finish

Smooth and granular finishes

Installation

  • Batten size 38 x 25mm (rafters up to 450mm centres), 50 x 25mm (up to 600mm centres)

  • Tile nails 55mm x 3.35mm

  • Fixing clips for eaves, verge, and tiles

Accreditations

  • BES 6001 certified

  • A+ BRE Green Guide rating

Warranty

15 year guarantee with full Marley Roof System

Sustainability

Supports BREEAM credits
