Material Galvanised steel
Installation Fixed

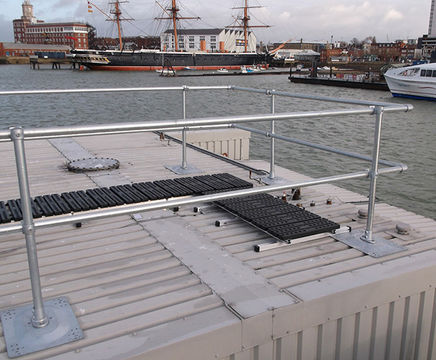

KeeGuard® Topfix is available in either galvanised or aluminium options. A base plate with multiple fixing centres is fixed directly on to the profile sheeting by either rivets or non-penetrative two-part clamps, and a butyl sealing strip maintains the roof’s integrity.

This unique plate design allows the system to be fitted to a wide range of profile sheet centres and provides a support for the vertical standard leg which can be adjusted from 0-11°. The horizontal rails are then simply fitted to the open saddle fittings to provide a collective fall protection solution.

KeeGuard® Topfix has been tested to EN 13374: Temporary Edge Protection Systems - Product Specification Test Methods and has been awarded a Class A Pass.

Features and benefits

  • Collective protection for metal profile and standing seam roofs
  • Non-penetrative solution for standing seam roofs
  • Modular ‘off the shelf’ system
  • Watertight fixings for metal profile roofs

Safety standards

Fully tested to meet or exceed current safety standards including:

  • BS EN 13374 Class A
  • BS EN 14122 part 3

KeeGuard® Topfix should be inspected and recertified annually in order to ensure the safety of the systems.


KeeGuard® Topfix is available in either galvanised or aluminium options. A base plate with multiple fixing centres is fixed directly on to the profile sheeting by either rivets or non-penetrative two-part clamps, and a butyl sealing strip maintains the roof’s integrity.

This unique plate design allows the system to be fitted to a wide range of profile sheet centres and provides a support for the vertical standard leg which can be adjusted from 0-11°. The horizontal rails are then simply fitted to the open saddle fittings to provide a collective fall protection solution.

KeeGuard® Topfix has been tested to EN 13374: Temporary Edge Protection Systems - Product Specification Test Methods and has been awarded a Class A Pass.

Features and benefits

  • Collective protection for metal profile and standing seam roofs
  • Non-penetrative solution for standing seam roofs
  • Modular ‘off the shelf’ system
  • Watertight fixings for metal profile roofs

Safety standards

Fully tested to meet or exceed current safety standards including:

  • BS EN 13374 Class A
  • BS EN 14122 part 3

KeeGuard® Topfix should be inspected and recertified annually in order to ensure the safety of the systems.
