Material Galvanised steel
Installation Free standing




The KeeGuard® collective protection range includes standard vertical, raked, radiused and folding systems. It is designed to provide permanent edge protection for areas where regular access is required for maintenance and inspection purposes. Being free-standing systems do not require fixing into the roof’s structure or membrane. It is suitable for installation on virtually any configuration of flat roofs up to 10° slope.

KeeGuard® is a modular design and features Kee Klamp® open style fittings which allow quick installation of the horizontal rails and 100% recycled PVC counter weights.

The KeeGuard® collective protection range should be inspected and recertified annually in order to ensure the safety of the systems.

Features and benefits

  • Provides edge protection for all those working on the roof
  • Free-standing, counterbalanced system
  • Overcomes need to penetrate the roof membrane
  • Quick and easy installation
  • Suitable for use on concrete, asphalt, PVC membrane and felt roof surfaces
  • Can be used on most flat roof configurations up to 10° slope
  • All steel components galvanised to BS EN ISO 1461
  • 5-year warranty

Safety standards

Fully tested to meet or exceed current safety standards including:

  • EN 13374 Class A
  • EN ISO 14122 Part 3
  • HSG-33 Health & Safety in Roof Work
  • HSE INDG 284 “Working on roofs”
  • BS 6399: Part 2 1995 Wind Codes


The KeeGuard® collective protection range includes standard vertical, raked, radiused and folding systems. It is designed to provide permanent edge protection for areas where regular access is required for maintenance and inspection purposes. Being free-standing systems do not require fixing into the roof’s structure or membrane. It is suitable for installation on virtually any configuration of flat roofs up to 10° slope.

KeeGuard® is a modular design and features Kee Klamp® open style fittings which allow quick installation of the horizontal rails and 100% recycled PVC counter weights.

The KeeGuard® collective protection range should be inspected and recertified annually in order to ensure the safety of the systems.

Features and benefits

  • Provides edge protection for all those working on the roof
  • Free-standing, counterbalanced system
  • Overcomes need to penetrate the roof membrane
  • Quick and easy installation
  • Suitable for use on concrete, asphalt, PVC membrane and felt roof surfaces
  • Can be used on most flat roof configurations up to 10° slope
  • All steel components galvanised to BS EN ISO 1461
  • 5-year warranty

Safety standards

Fully tested to meet or exceed current safety standards including:

  • EN 13374 Class A
  • EN ISO 14122 Part 3
  • HSG-33 Health & Safety in Roof Work
  • HSE INDG 284 “Working on roofs”
  • BS 6399: Part 2 1995 Wind Codes


Interested in this product?
Call 01293 529977
OR



Downloads
  • KeeGuard® - operation and maintenance
    KeeGuard® - operation and maintenance
    20pp 1.48MB
    Download


Video





Enquire



Related entries

  • Safesite: Don't choose between safety and cost
    Don't choose between safety and cost
    Safesite
    It’s a common conundrum for every site manager and contractor. How can you keep to your budget without putting workers’ lives at risk? At Safesite, we want to make safe, efficient work a reality for everyone, no matter the...
  • Safesite: Should you have a roof walkway?
    Should you have a roof walkway?
    Safesite
    Ensuring the safety of those who work at height on buildings should be a priority for both site managers and designers. Under the Construction (Design and Management) Regulations 2015, foreseeable risks should be eliminated,...
  • Safesite: Are you meeting your roof safety responsibilities?
    Are you meeting your roof safety responsibilities?
    Safesite
    When you have a safety system installed on your roof, or on the roof of a building you manage, you might feel you’ve done your bit for health and safety. Time to sit back and enjoy the peace of mind, right? Not quite.
  • Safesite: A first class installation of radiused KeeGuard
    A first class installation of radiused KeeGuard
    Safesite
    KeeGuard edge protection has been installed by Safesite at Warwick Business School to allow safe access onto the roof areas. Part of the University of Warwick, Warwick Business School has plant and machinery such as air...
  • Safesite: KeeGuard® Premium free-standing roof edge guardrail
    KeeGuard® Premium free-standing roof edge guardrail
    Safesite
    Safesite's KeeGuard® Premium collective fall protection system overcomes the trip hazards encountered with traditional free-standing cantilevered systems by eliminating the need for off-set counterweights. This reduces the...
Not found what you're looking for? View other options

Ask Safesite about

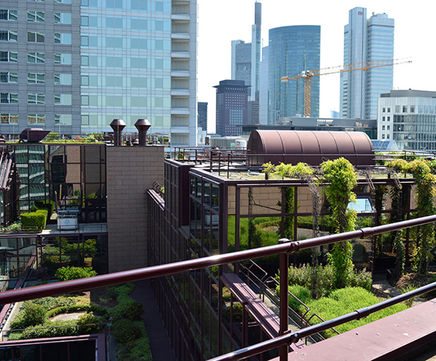

KeeGuard® free-standing roof edge guardrail system
