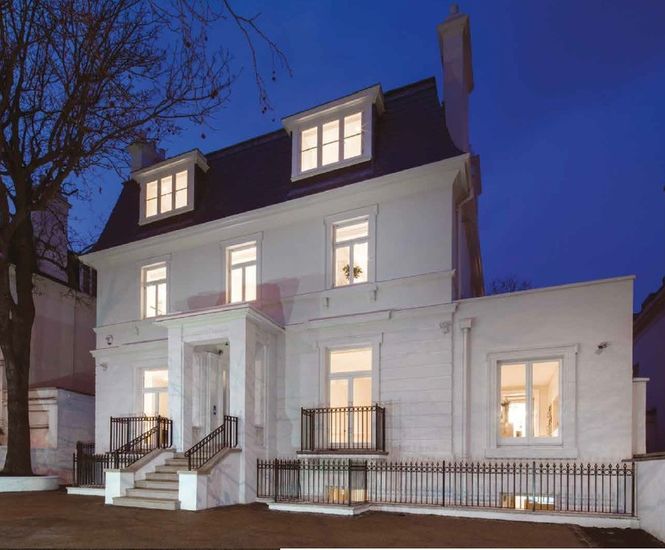

This luxurious residential project incorporated a double level basement with the lower level extending out underneath the garden. Knowles & Associates Ltd undertook the following works to the below-ground structure:

  • Excavation and formation of a basement to footprint and under 7 metres below garden level.
  • Two / three stage underpinning. Internal steel staircase frame.
  • Piling.
  • Mass excavation of spoil.
  • Construction of rear extension.
  • Below slab drainage.
  • Cavity drain.
  • Waterproofing.
  • Insulation and screed.
  • Swimming pool shell within lower level basement.

Methodology

To waterproof the below-ground structure of this project a ‘type C’ waterproofing system (Delta System 500) was installed internally to manage and control any water ingress. Delta MS500 fixed to the walls and Delta MS20 laid across the floor sealed with the necessary tapes. Modular drainage was used to drain any water build up to a bespoke Delta packaged pump station situated within the RC concrete slab on the lower level basement. This collects ground and surface water from the basement walls, floor and from the external light wells. A separate foul pump station was installed to deal with the foul facilities within the basement.

To waterproof the basement lid of the lower level that extends out underneath the garden Koster Deuxan 2C was applied to the topside of the soffit with a glass fibre mesh embedded into the first coat to giving it crack bridging qualities.

Result

An impressive basement leisure centre with a stunning swimming pool, Jacuzzi and steam room.

System components

  • Delta MS500 wall membrane
  • Delta MS20 floor membrane
  • Qwik-Seal fixing plugs
  • Double-sided tape
  • Delta corner strip tape
  • Bespoke dual groundwater and surface water sump pump
    2x V6 pumps within a 800x1300 chamber; capable of pumping 1.8l/s @ 10.0m head; storage capacity (total) 653 litres
  • Bespoke dual foul water sump pump
    2x foul three-phase submersible pumps within a 1160 x 1540 chamber; capable of pumping 5.0l/s @ 12.0m head; storage capacity (total) 1100 litres
  • Koster Deuxan 2C
    Crack-bridging, stable, 2-component, polymer modified bitumen thick film sealant for waterproofing external (positive side) substrates
  • Koster glass fibre mesh
    Glass silk fabric for reinforcing coatings
