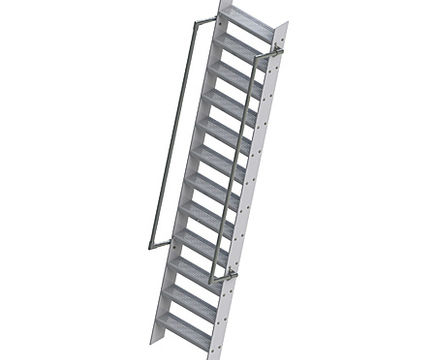

Companionway fixed vertical ladder

Type BL-COMP companionway ladders are designed for use with Bilco Roof Access Hatches

Click for full image


1/12

Type Step ladders
Fixed / portable Fixed




Type BL-COMP companionway ladders are designed for use with Bilco roof access hatches.

Specifications: aluminium

  • Ladder: Punched aluminium treads and stand off brackets from 50mm x 10mm alloy rectangular bar. Fixings in A4 grade stainless steel.
  • Ladder width: 600mm
  • Finish: fully alloy mill finish
  • Grab Rail Height: 300mm (nom)
  • Ladder Angle: 75 degrees (nom)
  • Height: 4 standard versions from 1.5 to 3m available
  • Special sizes available upon request

Specifications - mild steel

  • Ladder: Punched mild steel treads and stand off brackets from 50mm x 10mm alloy rectangular bar. Fixings in A4 grade stainless steel.
  • Ladder width: 600mm
  • Finish: Galvanised
  • Grab Rail Height: 300mm (nom)
  • Ladder Angle: 75 degrees (nom)
  • Height: 4 standard versions from 1.5 to 3m available
  • Special sizes available upon request


Type BL-COMP companionway ladders are designed for use with Bilco roof access hatches.

Specifications: aluminium

  • Ladder: Punched aluminium treads and stand off brackets from 50mm x 10mm alloy rectangular bar. Fixings in A4 grade stainless steel.
  • Ladder width: 600mm
  • Finish: fully alloy mill finish
  • Grab Rail Height: 300mm (nom)
  • Ladder Angle: 75 degrees (nom)
  • Height: 4 standard versions from 1.5 to 3m available
  • Special sizes available upon request

Specifications - mild steel

  • Ladder: Punched mild steel treads and stand off brackets from 50mm x 10mm alloy rectangular bar. Fixings in A4 grade stainless steel.
  • Ladder width: 600mm
  • Finish: Galvanised
  • Grab Rail Height: 300mm (nom)
  • Ladder Angle: 75 degrees (nom)
  • Height: 4 standard versions from 1.5 to 3m available
  • Special sizes available upon request





Downloads
  • Companionway ladder
    Companionway ladder
    1pp 132.97KB
    Download
  • Companionway ladder - installation
    Companionway ladder - installation
    3pp 453.1KB
    Download
  • Companionway ladder: Type BL-COMP-A - aluminium
    Companionway ladder: Type BL-COMP-A - aluminium
    1pp 1.58MB
    Download
  • Companionway ladder: Type BL-COMP-S - steel
    Companionway ladder: Type BL-COMP-S - steel
    1pp 1.58MB
    Download
  • Bilco roof access solutions
    Bilco roof access solutions
    18pp 2.72MB
    Download
