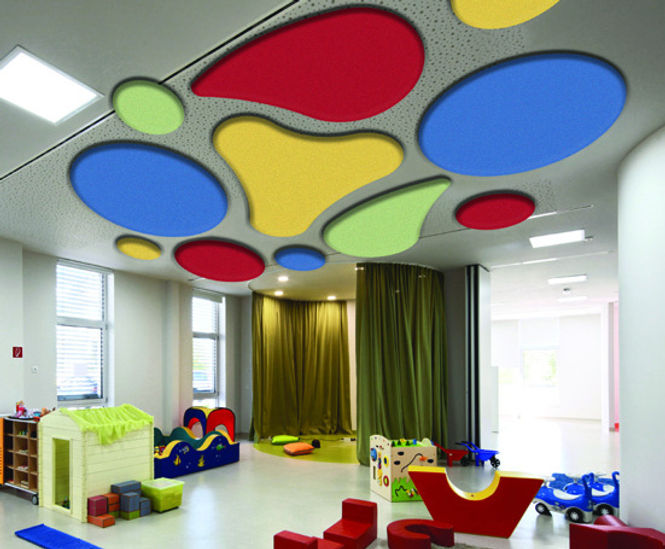

BUBBLESORBA™ acoustic panels come in unique organic shapes, used to absorb noise while adding visual impact. Manufactured from acoustic foam, backed with a durable board and upholstered in acoustic fabric. Suitable for walls and ceilings. Available in 9 individual shapes and 9 pre-designed pattern groups across 18 standard colours.

Applications

  • Offices

  • Restaurants and cafes

  • Hotels and reception areas

  • Showrooms

  • Studios Homes

Product Specification

Thickness

50mm

Acoustic Performance

Absorbs 85% of incident sound, Class A

Performance Range

Highest absorption at 500-4000 Hz (speech frequency range)

Test Method

BS EN 20354: 1993, direct fixed to backing

Fire Rating

Foam: BS 5852 Part 2, 1982, Ignition source 5 (Crib 5). Fabric: BS 476 Part 7 Class 1, BS 476 Part 6 Class 0

Fixing

Gluesorba contact spray adhesive to walls or ceilings

Colours

18 standard colours

Shapes

Shape

Dimensions

Area

Square

580 x 580mm

0.34 m²

Square

815 x 815mm

0.66 m²

Square

1100 x 1100mm

1.21 m²

Circle

380mm dia

0.11 m²

Circle

770mm dia

0.47 m²

Circle

1100mm dia

0.95 m²

Left Tear

1000 x 1100mm

0.41 m²

Right Tear

600 x 1000mm

0.41 m²

Seashell

1000 x 1100mm

0.66 m²

Shapes can be arranged into pattern groups covering areas from 1.64 to 5.21 m².

9 standard groups are available, or custom compositions can be specified.

Colours

18 standard colours: Faint, Air, Pure, Elegant, Soft, Snug, Honest, Innocent, Mild, Nimble, Perfect, Cosy, Smooth, Sincere, Grace, Simple, Warm, Escape

Fire Performance

Foam: BS 5852 Part 2, 1982, Ignition source 5 (Crib 5) Fabric: BS 476 Part 7 Class 1 Fabric: BS 476 Part 6 Class 0
