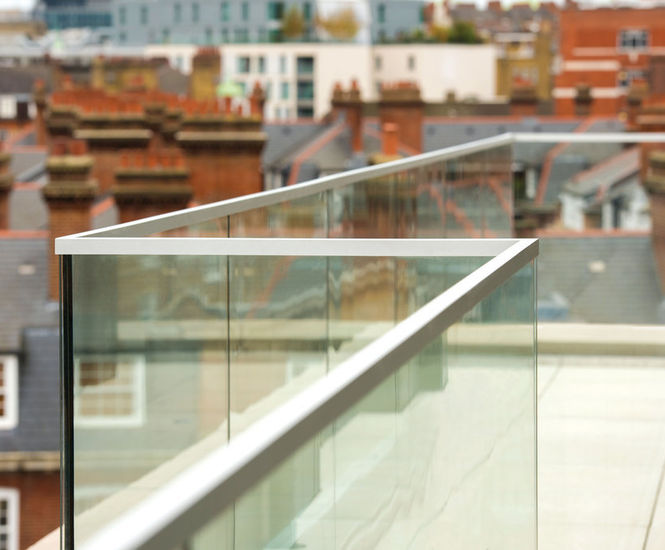

Enjoy uninterrupted views with the B40 minimalist all-glass balustrade solution.

Features

  • Provides effective, appealing edge protection

  • Minimalist design maximises views and sunlight - no vertical supports or visible fixings

  • Complementary handrail and trim detail enhance the architecture

  • Variety of options of handrails, glass thicknesses and base trims

  • Versatile base fixing integrates easily with other base details

  • Suitable for projects with short lead times

DriMax

Balustrade fixing technology that provides a sealable penetration detail through waterproofing membranes.

A2 fire-rated glass for residential projects over 18m high

This system is available as a A2 fire-rated glass balcony solution for residential projects over 18m high.

BA Systems' B40 fire-rated glass balustrade is compliant with BS EN 13501-1:2007+A1:2009.

Infill options

Balcony loading glass
15mm monolithic or 17.5mm-thick laminated clear toughened glass is typically used for balustrade loadings of 0.74kN/m design loads. This includes most residential balconies and terraces. Glass is available in various options of opaque or coloured interlayers.

Walkway loading glass
19mm monolithic or 21.5m- thick laminated clear toughened glass – which is used in public areas and general walkways. Glass is available in various options of opaque or coloured interlayers.

Crowd loading glass
26.5mm-thick clear toughened and laminated glass is used in public walkways wider than 3m and other areas that are subject to overcrowding. Glass is available in various options of opaque or coloured interlayers.

Available in Vetobac® VBA99 antimicrobial metal

VBA99 antimicrobial metal kills 99.9% of bacteria and viruses and is set to be the new standard for hygienic metal surfaces.

Independent lab testing by the University of Southampton has proven VBA99 to kill 95% of Covid-19 within 10 minutes of contamination. In addition, superbugs such as MRSA, E-Coli and Norovirus are also effectively and rapidly killed by contact with VBA99.

Lifetime protection - no coating
Unlike plated or coated finishes, VBA99 is a copper-based metal material. There’s no surface coating to wear-off, so even vigorous cleaning doesn’t compromise effectiveness.

Tarnish-free copper blend
VBA99 maintains its pristine finish and does not oxidise or discolour like copper or brass does. The lightly brushed finish co-ordinates well with stainless steel on non-touch surfaces.
