Single-glazed aluminium opening vents are made for 6-10mm infills, with a slim, low-profile frame for roof or vertical glazing. Designed for manual, remote or electric operation, these vents suit a range of installation positions and project needs, with maximum vent sizes up to 1000 x 2000mm and stroke lengths up to 400mm.

  • Single-glazed aluminium vent system for roof and vertical glazing

  • Low-profile, slender sightlines for a discreet appearance

  • Compatible with manual, remote and electric opening mechanisms

  • Suitable for 6-10mm glass or panel thickness

  • Flexible installation at top, centre or lower glazing positions

  • Available in single or double push point gearing for different vent sizes

  • CAD drawings, 2D/3D renders, and H10 specifications available for design support

Applications

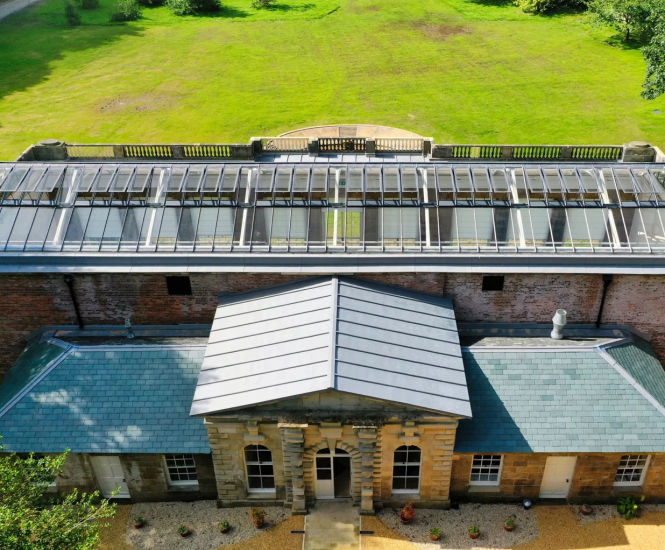

  • Roof glazing in commercial or public buildings

  • Vertical glazing in facades or curtain walling

  • Natural ventilation in atriums and corridors

  • Daylight and ventilation control in offices or schools

  • Patent glazing systems

Dimensions

Single push point gearing: up to 750 (w) x 1500mm (d)

Double push point gearing: up to 1000 (w) x 2000mm (d)

Maximum stroke length: 400mm

Options and variations

Manual, remote-controlled and electric gearing options

Single or double push point gearing
