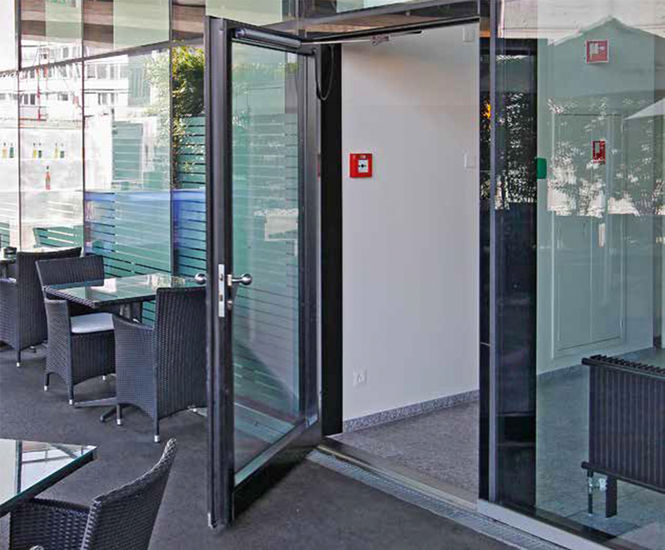

TORMAX 1201 swing door drive is made for heavy or wide internal and external doors, supporting leaf widths up to 1400mm and weights up to 250kg. Compact at 85mm high, it suits newbuilds or refurbishments and can handle high wind loads up to 60km/h. Quiet operation and integrated mechanical closing are standard. Compatible with access control and building management systems.

  • Swing door drive for single or double-leaved pedestrian doors
  • Slender aluminium casing with 85mm height, 128mm depth, 640mm length
  • Quiet, balanced movement for high-traffic areas
  • Power Assist, Low Energy, and Full Power operation modes
  • Energy conservation function and integrated mechanical closing
  • Network compatible for access control integration
  • Simple installation and commissioning

Applications

  • Building entrances and interiors
  • Fire and smoke protection doors
  • Escape and panic routes
  • Barrier-free and airlock doors
  • Doors exposed to high wind loads
  • Access doors for rooms with positive or negative air pressure

Dimensions

Height 85mm

Depth 128mm

Length 640mm

Door leaf width up to 1400mm

Door leaf weight up to 250kg

Performance

Wind load resistance up to 60km/h

Tested to 1 million cycles at 4000 cycles per day

Installation

Fits all standard doors in newbuilds or renovations

Product accreditations

EN 16005 (TÜV)

DIN 18650 (TÜV)

UL 325

UL 228 fire door

UL 10c / CAN / ULC S104 / NFPA 252 / ETL

Eurofins, IP68 with DFT casing
