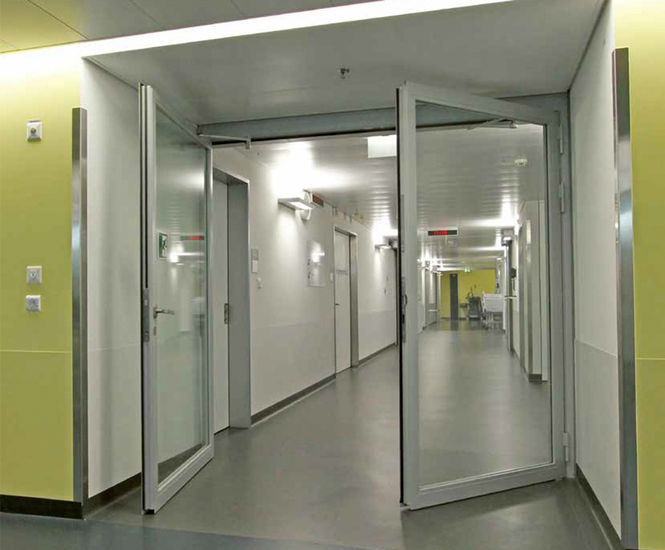

TORMAX 1102 swing door drive is made for light, narrow doors with a compact 85mm installation height. Designed for single or double-leaf pedestrian doors up to 1200mm wide and 125kg. Quiet operation and balanced movement suit internal and external use. Aluminium casing with integrated user interface and mechanical closing function. Compatible with access control and building management systems.

  • Slim swing door drive for light, narrow doors
  • Installation height of 85mm for discreet appearance
  • Supports door widths up to 1200mm and weights up to 125kg
  • Quiet, smooth operation for comfort in public and private spaces
  • Energy conservation function and powerful motor
  • Network compatible for integration with building systems
  • Mechanical door closing function included

Applications

  • Internal and external pedestrian doors in building entrances and interiors
  • Single and double-leaf passageways
  • Barrier-free and escape route doors
  • Fire and smoke protection doors
  • Access doors to rooms with air pressure control

Dimensions

Height 85mm

Depth 128mm

Length 640mm

Performance

Tested to 1 million cycles at 4000 cycles per day

Product accreditations

EN 16005 (TÜV)

DIN 18650 (TÜV)

UL 325

UL 228 / ETL

UL 10c / CAN / ULC S104 / NFPA 252 / ETL
