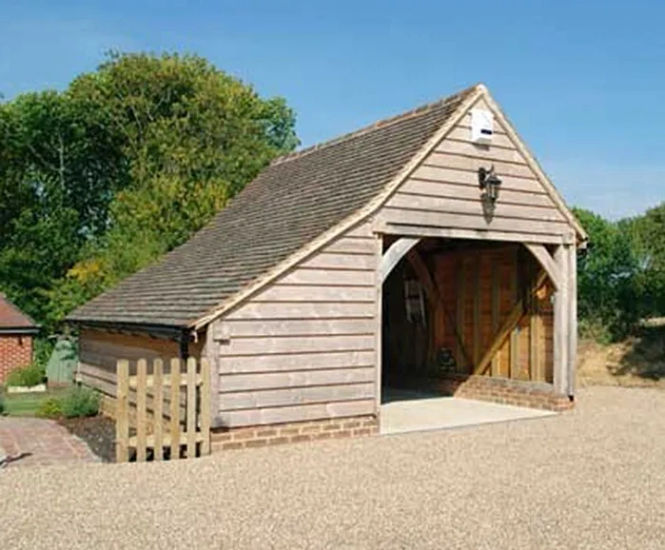

1 Bay Oak Frame Garage CH1GA is a single-bay oak garage with a gable roof and side aisle, designed for customisation to fit site requirements. Made from oak and treated softwood, it features traditional mortise and tenon joints, granite staddle stones, and a pre-cut roof structure. Suitable for residential or ancillary storage use, with a footprint of 4.375 x 5.6m.

  • Single-bay oak garage with gable roof and side aisle, customisable footprint
  • Made from oak posts, eaves, tie beams, and curved braces with kiln dried oak pegs
  • Softwood soleplates, studwork, rafters, and treated featheredge weatherboard
  • Traditional mortise and tenon joints for structural integrity
  • Granite staddle stones for independent posts
  • Pre-cut roof rafters and step-by-step assembly instructions included
  • Optional features include alternative cladding, roof styles, and storage areas

Applications

  • Residential garage for vehicle storage
  • Ancillary storage building
  • Garden outbuilding
  • Workshop or hobby space
  • Customised outbuilding for rural or suburban properties

Dimensions

Footprint 4.375 x 5.6 m

Ridge height 3.510 m

Ridge length 5.7 m

Roof area 34.64 m²

Underside of eaves beam 2.1 m

Measurement between front posts 2.575 m

Materials

Oak posts, eaves, tie beams, curved braces, kiln dried pegs

Softwood soleplates, studwork, rafters, treated featheredge weatherboard

Granite staddle stones

Options and variations

Customisable footprint and bay width

Alternative cladding options

Choice of roof ends: hip, barn-hip, gable, gablet

Additional storage areas such as half bay or log store

Installation

Step-by-step assembly instructions included

All softwood pre-treated

Parts kit includes DPC and fixings

Performance

Main roof pitch 40°

Catslide roof pitch 37°

Rafters at 400 mm centres

Number of tiles required (average) 2078

Number of round wood bricks required 239

Technical support

Planning and building regulations advice available

Planning drawings for submission can be supplied

Assistance with planning permission process
