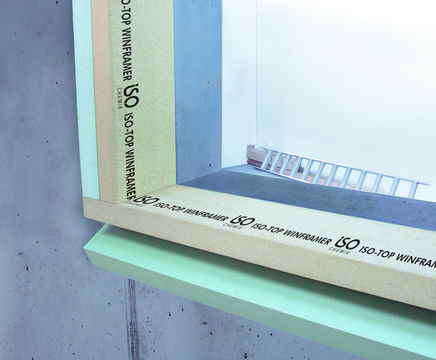

ISO-TOP WINFRAMER is an in-front-of-wall insulation system makes it easy to position and fit windows on an insulation plane. It comprises a load-bearing system angle and a highly thermally insulating core which can simply be moved back out of the way during the bolting process.

ISO-TOP WINFRAMER is fire-rated to E30 meaning it can protect the entire window area from fire for a minimum of 30 minutes, guaranteeing the retention of structural integrity, as well as supporting at least 200kg/m and providing an air-tight cavity support.

ISO-TOP WINFRAMER is straightforward to install due to its practical hinged mechanism.

  • Windows can be fitted on the outer thermal insulation level
  • Individual combination with ISO-Chemie sealing components
  • Integrated thermal insulation core
  • Simple adaptation of length using standard mitre saws
  • Complies with the requirements of EnEV
  • Reduction of structure-related thermal bridges
  • Suitable for installation and sealing according to RAL "Installation guide"

Available in 3 types:

The IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 1“ makes it exceptionally easy to position and fit windows on the insulation plane. It comprises a load-bearing system angle made of PURATHERM and a highly thermally insulating core which can simply be hinged out of the way during the fixing process.

The intumescent effect of the PURATHERM E30 material makes the ISO-TOP WINFRAMER „TYPE 1” E30 IN-FRONT-OF-WALL INSTALLATION SYSTEM perfect for use in fire protection facades.

ISO-TOP WINFRAMER „TYPE 1“ PREFAB is the project-related version of the „TYPE 1“ in front of wall installation system prefabricated at the factory to optimise time and costs. The main advantages are its configurable delivery lengths and projection dimensions as well as the option of prefabricating complete supporting frames.

A selection of new system brackets were introduced to provide increased overhang whenever necessary. These are available in three sizes: a 80mm wide x 80mm high bracket to fit the majority of UK window sizes and a 140mm wide x 90mm high option for deeper window profiles, or for use with combination products such as roller shutters.

A third bracket size (200mm wide x 110mm high) is ideal for reaches from 160mm to a maximum of 200mm, providing a robust, strong and high performance support frame with a high load-bearing capacity that’s capable of supporting heavier window loads as well as bi-fold doors.

Installation is quick with windows attached directly and secured mechanically using either standard fixing screws or fixing lugs in the usual manner. A hinged insulation core combines with the composite wood structural bracket to become an integral part of the overall wall structure, providing compliance with window energy saving regulations (EnEV) and the RAL quality assurance association.

New system boards, available in thicknesses of 30mm wide x 50mm high, 50mm wide x 60mm high, 30mm wide x 80mm high and 50mm wide x 110mm high, are available in a 1,200mm length for additional overhang capacity or incorporation in a front-of-wall installation system.


ISO-TOP WINFRAMER is an in-front-of-wall insulation system makes it easy to position and fit windows on an insulation plane. It comprises a load-bearing system angle and a highly thermally insulating core which can simply be moved back out of the way during the bolting process.

ISO-TOP WINFRAMER is fire-rated to E30 meaning it can protect the entire window area from fire for a minimum of 30 minutes, guaranteeing the retention of structural integrity, as well as supporting at least 200kg/m and providing an air-tight cavity support.

ISO-TOP WINFRAMER is straightforward to install due to its practical hinged mechanism.

  • Windows can be fitted on the outer thermal insulation level
  • Individual combination with ISO-Chemie sealing components
  • Integrated thermal insulation core
  • Simple adaptation of length using standard mitre saws
  • Complies with the requirements of EnEV
  • Reduction of structure-related thermal bridges
  • Suitable for installation and sealing according to RAL "Installation guide"

Available in 3 types:

The IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 1“ makes it exceptionally easy to position and fit windows on the insulation plane. It comprises a load-bearing system angle made of PURATHERM and a highly thermally insulating core which can simply be hinged out of the way during the fixing process.

The intumescent effect of the PURATHERM E30 material makes the ISO-TOP WINFRAMER „TYPE 1” E30 IN-FRONT-OF-WALL INSTALLATION SYSTEM perfect for use in fire protection facades.

ISO-TOP WINFRAMER „TYPE 1“ PREFAB is the project-related version of the „TYPE 1“ in front of wall installation system prefabricated at the factory to optimise time and costs. The main advantages are its configurable delivery lengths and projection dimensions as well as the option of prefabricating complete supporting frames.

A selection of new system brackets were introduced to provide increased overhang whenever necessary. These are available in three sizes: a 80mm wide x 80mm high bracket to fit the majority of UK window sizes and a 140mm wide x 90mm high option for deeper window profiles, or for use with combination products such as roller shutters.

A third bracket size (200mm wide x 110mm high) is ideal for reaches from 160mm to a maximum of 200mm, providing a robust, strong and high performance support frame with a high load-bearing capacity that’s capable of supporting heavier window loads as well as bi-fold doors.

Installation is quick with windows attached directly and secured mechanically using either standard fixing screws or fixing lugs in the usual manner. A hinged insulation core combines with the composite wood structural bracket to become an integral part of the overall wall structure, providing compliance with window energy saving regulations (EnEV) and the RAL quality assurance association.

New system boards, available in thicknesses of 30mm wide x 50mm high, 50mm wide x 60mm high, 30mm wide x 80mm high and 50mm wide x 110mm high, are available in a 1,200mm length for additional overhang capacity or incorporation in a front-of-wall installation system.
