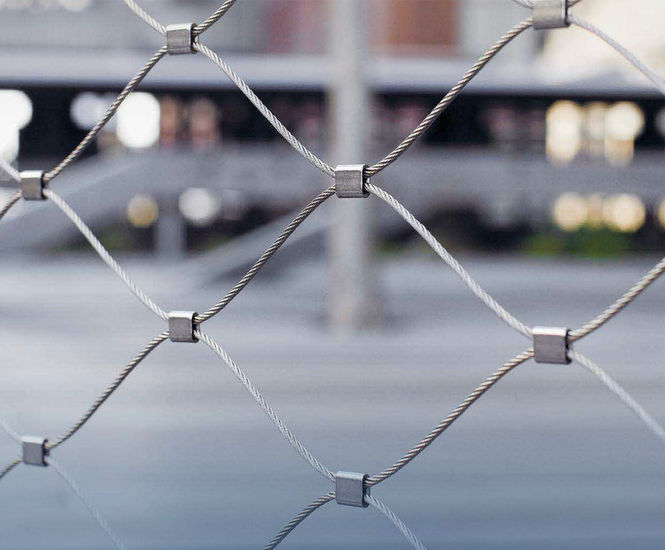

Jakob Webnet is a stainless steel wire mesh system made from high grade 316 or 316L steel rope, designed for architectural and safety applications where strength, transparency, and durability are required.

  • Stainless steel mesh system for architectural and safety use
  • Made from AISI 316 or 316L (1.4401, 1.4404) marine grade stainless steel
  • Custom-made to project-specific dimensions and mesh orientation
  • Available with or without sleeves for different transparency and strength needs
  • UV and weather resistant for indoor and outdoor use
  • Black anodised or powder coated finishes available
  • Certified by German Institute for Building Technology (DIBt) (Z-14.7-557)

Applications

  • Balustrade infill
  • Animal enclosures and zoo applications
  • Safety and fall-prevention nets
  • Green wall systems
  • Bridge and car park protection
  • Fences and barricades

Materials

High grade 316 or 316L stainless steel wire rope

Finish

Black anodised or powder coated options

Options and variations

With sleeves for flexibility and economy; without sleeves for higher transparency

Performance

Corrosion resistant, UV and weather resistant, high tensile strength

Installation

Pre-fabricated to size; installed by threading rope through mesh and tensioning around structure; minimal tools required

Manufacture

Made in Jakob’s own manufacturing plant; hand-assembled and mechanically pressed for consistent quality

Accreditations

Certified by German Institute for Building Technology (DIBt) (Z-14.7-557)
