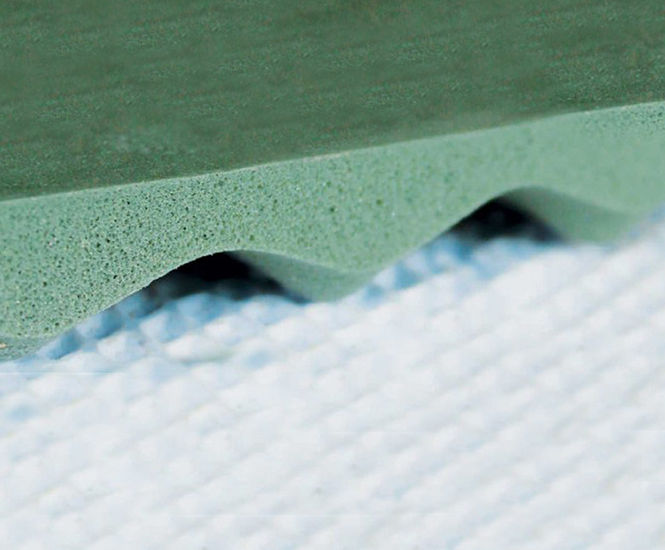

Sylomer® vibration isolation material is made from PUR elastomer with a fine cellular, compact structure, designed for use as an elastic support in construction and mechanical engineering to reduce vibration and noise. Supplied in continuous rolls or moulded parts, stiffness and thickness can be tailored for specific load requirements.

Sylomer® materials are available as a continuous roll and are particularly well suited as flat, elastic layers. Above and beyond this, engineered moulder parts made of Sylomer® are also available.

For specific applications, special types can be manufactured with precisely defined stiffness. The material’s fine cellular structure provides the necessary deformation volume under static and dynamic loads. As a result, elastic bearings with full-surface load transmission are possible. This offers major engineering and economic advantages, especially in the construction industry.

  • Elastic support material for vibration and noise isolation in buildings and machinery

  • Compression-loaded for full-surface load transmission

  • Available as flat layers or engineered moulded parts

  • Stiffness can be precisely defined for specific applications

  • Loss factor ranges from 0.09 to 0.25 for dynamic dampening

  • Shearing stiffness is 4–10 times lower than compression stiffness

Applications

  • Acoustic isolation in schools, offices, cinemas, bowling alleys, sports halls, gyms, theatres, commercial and residential buildings

Materials

Made from PUR elastomer

Options and variations

SR24
SR55
SR450
SR11
SR28
SR110
SR850
SR18
SR42
SR220
SR1200

Performance

Mechanical loss factor 0.09–0.25
Compression to shearing stiffness ratio 4–10
