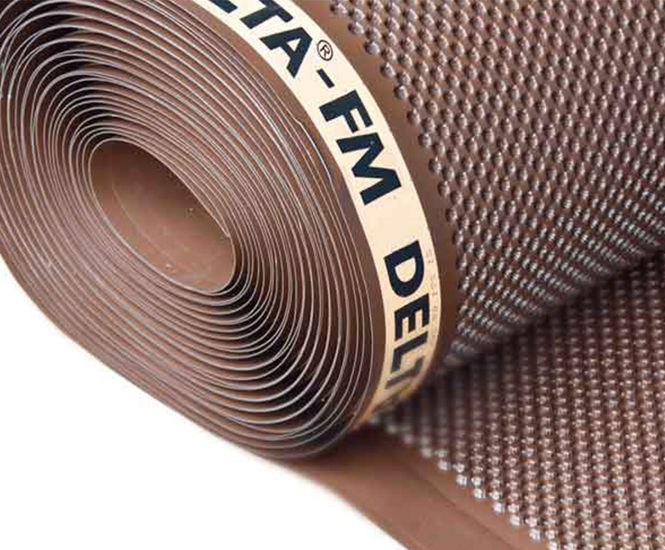

Delta FM is a damp proofing membrane specifically designed to combat dampness and contamination of floors. The special 3mm low stud profile minimises changes in floor levels while still providing an air gap to achieve damp pressure equalisation.

Various floor finishes can be achieved with zero ‘down time’ with this fast-track application.

Delta FM can be used in new build, remedial or refurbishment projects for floors, and walls.

Delta FM can also be used in conjunction with thermal installation, sound insulation and many types of underfloor heating systems.

This membrane is used as damp-proofing on walls, floors and vaulted ceilings, above and below ground. It can be used in new construction or in existing buildings over a contaminated or damp background.

Features, benefits and applications

  • Type C Drained Protection in accordance with BS 8102:2022, Protection of below ground structures against water ingress. Code of practice

  • BBA Approved

  • Fast track application

  • RH Levels are isolated in the air gap and controlled.

  • A reversible system, which will minimize damage to historical or heritage structures

  • Virgin high density polyethylene studded/moulded sheet (HDPE)

  • An effective barrier to the transmission of salts, liquid water and water vapour

Delta FM is a fast-track application which allows for various floor finishes to be achieved with zero ‘down time’. Delta FM can be used in new build, remedial or refurbishment projects for floors and walls.

Delta FM can also be used in conjunction with thermal installation, sound insulation and numerous types of underfloor heating systems.

Delta FM is suitable for use on damp proofing walls, floors and vaulted ceilings, above and below ground, in new construction or in existing buildings over a contaminated or damp background. It can support a dry lining, screed or flooring, in the following situations:

  • on damp floors in situations subject to perennial moisture

  • in conjunction with a remedial DPC Systems where the walls and floors have a high salt content and/or it is necessary to complete the installation immediately without allowing a period for initial drying

  • over walls and floors which have a friable or painted surface, are contaminated (eg with oil or mould), or have a high salt content

  • as a waterproofing membrane in areas subject to vibration.

Depending on the application required and the site conditions, the membrane may be used as:

  • an underfloor damp-proof membrane

  • a dry lining for walls, ventilated into the room via aeration slots at the top and bottom of the wall or via passive air vents, where access through an external wall is available

  • a sealed system covering wall, floor and ceiling with provision made for disposing of water build-up behind the membrane via a sump and pump.

Product details

  • Product code: DMS023

  • Material: Virgin high-performance PE-VHD

  • Application: Special low stud profile for floor. Can be used on walls

  • Sheet Thickness: 0.6 mm

  • Stud Height: 4.5 mm

  • Roll Size: 2.0 x 2 m (40m²)

  • Compressive Strength: 500 KN/M²

  • Air volume between Dimples: 2.6 L/M²

  • Temperature Resistance: -30°C to +80°C

  • Behaviour of Fire: Class E
