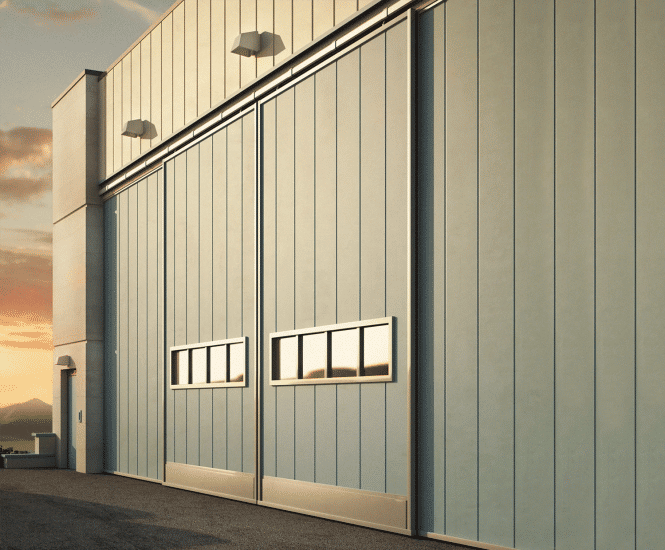

Series 250 Sliding Door System is made from galvanised steel and supports sliding doors up to 1000kg for commercial and agricultural use, including warehouses, stables, and garages. Suitable for straight sliding and bi-folding doors, with a wide range of compatible components for custom configurations.

  • Sliding door hardware system for heavy-duty industrial and agricultural doors
  • Supports doors up to 1000kg
  • Made from galvanised steel for corrosion resistance
  • Compatible with straight sliding and bi-folding door setups
  • Multiple track lengths: 1m, 2m, 3m, 4m
  • Various hangers, rollers, and bottom guides for different installation needs
  • Easy to assemble with a range of brackets and connectors

Applications

Warehouses

Stables

Garages

Commercial buildings

Agricultural buildings

Dimensions

Track lengths: 1m, 2m, 3m, 4m

Maximum door weight: 1000kg

Materials

Galvanised steel

Options and variations

Upper track: 1m, 2m, 3m, 4m

Bottom guide channel: 1m, 2m, 3m, 4m

Single axle and double axle hangers with various pin sizes and capacities

Multiple bottom guide rollers in rubber or brass, with different shaft types

Finish

Galvanised

Installation

Face fixing and soffit fixing brackets available

Track mounted door stops and adjustable wall fixing brackets

Performance

Supports doors up to 1000kg

Technical support

Downloads and resources available online
