Structural fixing & support
(135)
Structural fixing & support on BUILDING DESIGN. Helping you find the best solution for your project.
Structural fixing & support - helping you find the best solution for your project.

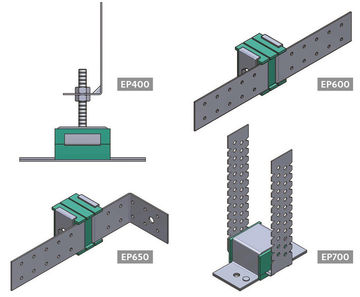

TVS resilient wall ties
Where it is required to structurally tie an isolated wall into an unisolated structure, there is a potentia bridge in the box-in-box design. TVS resilient wall ties overcome this problem by integrating a high-performance Sylomer element into the wall tie. Available in a whole host of designs, depending upon the construction of the isolated and

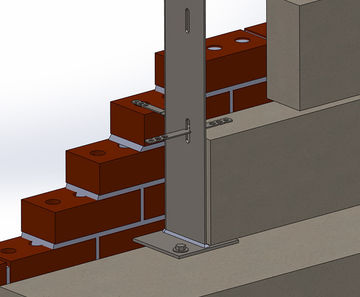

Stainless steel and mild steel windposts
Stainless steel and mild steel windposts for structural facades and brick walls are used to span vertically between floors of a building to provide additional structural strength to a wall where wind loads need to be addressed. L-profile, C-profile, box-profile, parapet and balustrade options available

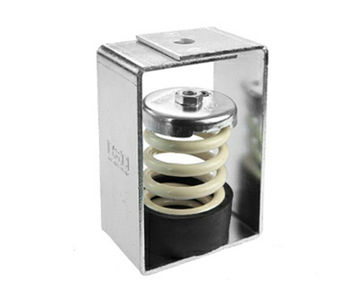

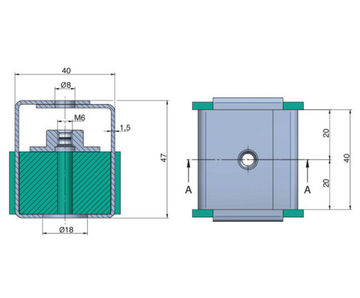

TVS SH Acoustic Hanger
The TVS SH Acoustic Hanger is a cost-effective acoustic ceiling solution for isolation of suspended equipment and ceilings. Utilising the high-performance sylomer material, the hangers are designed to solve both low- and high-frequency attenuation problems in a protective space or radiating to surrounding locations. Ideal for suspended ceilings

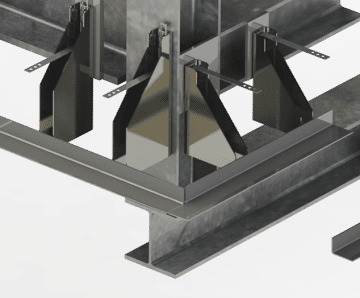

FIRMA masonry support systems
FIRMA masonry support systems are designed to allow for typical building tolerances and on-site adjustments. Supplied complete with the appropriate fixing packs and accompanying drawings for simple on-site installation. Design and fabrication of secondary steel products. Galvanised mild steel for the support of masonry brick and blockwork
TVS VT Acoustic Hanger
TVS VT Acoustic Hangers offer cost effective solutions for isolation of suspended equipment and ceilings. Designed to solve both low and high frequency attenuation problems in a protective space or radiating to surrounding locations. Ideal for suspended ceilings, piping, ductwork, air handling units and HVAC equipment: static deflections up to

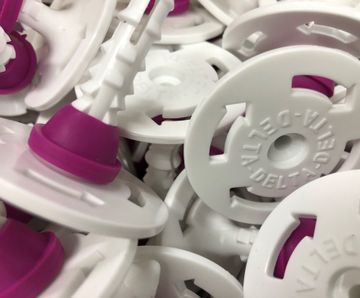

Ultra Fix membrane fixing plug
Ultra Fix hybrid fixing plugs provide installers and technicians a superior alternative and significant install improvement for all 3 and 8mm membranes such as the Delta PT, AT800 and 3mm mesh membrane. Uniquely designed using high-impact polymers and, when used with either sealing grommets or sealing rope, allow for a watertight, self-sealing- PRODUCT
Delta Membrane Systems
Habegger - wire rope winches, powered
A range of powered winches is available includes a super light power-driven rope pulling machine for lifting, pulling and lowering with unlimited rope strength. Technical data: rated force (pulling, lifting, lowering) - 800kg; overload protection by sliding clutch - at approx 20% overload; rope speed - approx 10m/min; rope length - unlimited; weight including

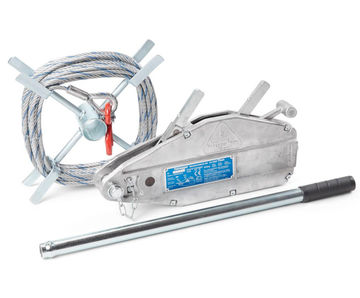

Habegger - wire rope winches, manual
Habegger manual wire rope winches are available in four versions. Habegger HIT-06 is the smallest and lightest unit available for pulling, lifting and lowering. Features: light alloy housing; anchorage bolts secured; overload protection by shear pin; exchangeable shear pins in jaw opening lever; case available. Technical data: rated force (pulling, lifting, lowering): 600kg

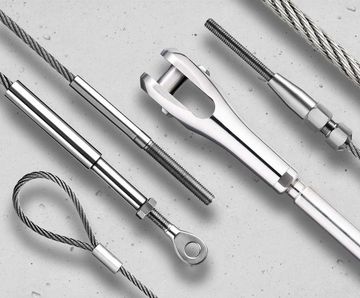

Jakob stainless steel wire rope wire systems
Jakob stainless steel wire rope assemblies are suitable for a wide variety of architectural and engineering applications and construction types, with sizes ranging from 1mm up to 26mm. All products are made from marine grade 316 stainless steel: made from 316 “marine grade” stainless steel; swiss quality, precision engineering; size from 1mm up to

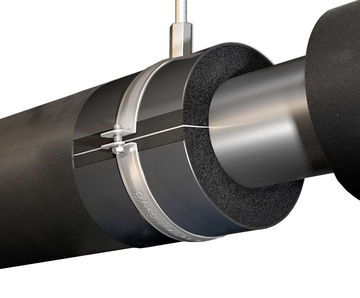

ArmaFix NH Smart - halogen free pipe support
ArmaFix NH Smart is a halogen free pipe support to prevent condensation and thermal bridging at fixing points in refrigeration and air-conditioning systems. It features PET-foam bearing segments, attached to NH/ArmaFlex Smart elastomeric foam. The outside shell is made from 0.8mm aluminium sheeting which serves as a vapour barrier: load-bearing

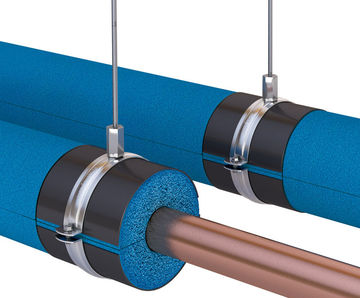

ArmaFix Ecolight
ArmaFix Ecolight is a lightweight, insulated pipe support designed to thermally isolate pipework from brackets, eliminating thermal bridging and preventing condensation at support points. Made with 100% recycled PET foam core and elastomeric ArmaFlex insulation with a PVC outer foil for compatibility with adjoining insulation. Suited to HVAC and

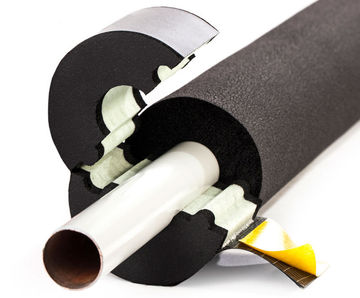

ArmaFix Ultima - pipe and duct support for cooling systems
ArmaFix Ultima is a one-piece pipe support system designed to prevent condensation in refrigeration and air conditioning installations. It has two ArmaFORM PET foam sections and a self-adhesive closure to fit with ArmaFlex Ultima: pipe support system designed to reduce condensation at fixing points; for cooling systems, including refrigeration and
ArmaFix AF - pipe and duct support
ArmaFix AF is a pipe and duct support system made of PET-foam core embedded in elastomeric insulation to prevent thermal bridging and condensation at fixing points. Designed for refrigeration and air-conditioning installations, it integrates with AF/ArmaFlex or AF/ArmaFlex Evo for seamless insulation. Load-bearing PET foam bonded withAF/ArmaFlex
Windpost package for 5-storey office building - Putney
FIRMA collaborated with the designer, developer and main contractor to deliver a sizeable windpost package for Parklife, a 5-storey office building overlooking the Grade II listed Wandsworth Park in Putney, London. This 40,000 sq ft vacant office building has been converted into a high-quality 80,000 sq ft urban workplace. FIRMA's sister company
- Frame cramps are used to tie timber frames to masonry. All are made from galvanised mild steel BS EN 10327:2004. Three sizes are available: 4", 150mm overall 6", 200mm overall 8", 250mm overall
- PRODUCT
- Bluebird Fixings
- Bluebird cavity wall screw ties comply with the strength requirements of DD140-1 for a type 2 tie. They are used to connect new walls to existing buildings at right angles. Quick and easy to use, no special tools or skills required to install them. The ties are made from austenitic stainless steel, and are suitable for 50 or 75mm cavities on
- PRODUCT
- Bluebird Fixings
- Expansion joint ties are debonding ties supplied complete with PVC sleeve. 2mm thick by 25mm wide, the ties are available 200 or 300mm long, with other lengths to special order. The ties are manufactured from 304 grade stainless steel (BS EN10088-2
- PRODUCT
- Bluebird Fixings
- Bluebird produces screw ties designed to be used in conjunction with membrane systems
- PRODUCT
- Bluebird Fixings
- There are many issues associated with failing wall ties: Horizontal and stepped cracking of the masonry / mortar Possible bulging of the walls The original building specification may have used too few wall ties Detection of the problem requires specialist equipment Timberwise have fully trained and experienced surveyors who have a range of systems
- PRODUCT
- Timberwise
- Timber frame tie are used to fix masonry to timber frame buildings. They are made from 0.5mm thick stainless steel. 250 ties per box complete with stainless steel ring shank nail Complies with strength requirements for a DD 140 type 6 tie To suit a 50mm cavity Tie nails are 50x3.35mm Ties should be installed at a density of 4.4 ties per square
- PRODUCT
- Bluebird Fixings
- Bluebird Screwties® provide an easy way of connecting new walls to existing buildings at right angles. They tie in walls without toothing and provide lateral stability for brick, block or stone. The ties can be used for internal or external walls. Galvanised Bluebird Screwties® are available for inner leaves. They are galvanised to BS EN
- PRODUCT
- Bluebird Fixings
- Uni-Wedge universal fixings are suitable for the seven most popular deck profiles, which are nearly always present on steel constructed multistorey buildings. They allow contractors to safely secure struts for cable trays, suspended ceilings and pipework supports to decking profiles without penetrating the decking membrane. Uni-Wedge fixings
- 90° bend debonding ties are made from 304 grade stainless steel (BS EN 10088-2), and are supplied with PVC sleeves. They are used in expansion joints. The ties are also available without the sleeve
- PRODUCT
- Bluebird Fixings
Structural fixing & support - helping you find the best companies for your project.
FIRMA
Fulfilling a market need for non-combustible construction support systems fabricated in mild steel, aluminium and stainless steel. This requirement was realised with our sister company; BA Systems. Whilst working with contractors we were often asked to fabricate additional construction support systems such as stainless steel cavity trays or
