Operation Powered
Rated force (kg) 800-12,800kg
Rope speed (m/min) 1-10
Max rope length Unlimited
Max rope diameter (mm) 28
Effective rope breaking load (kN) 50-640
Power (kW) 1-7.5
Weight (kg) Including engine: 30-860




A range of powered winches is available.

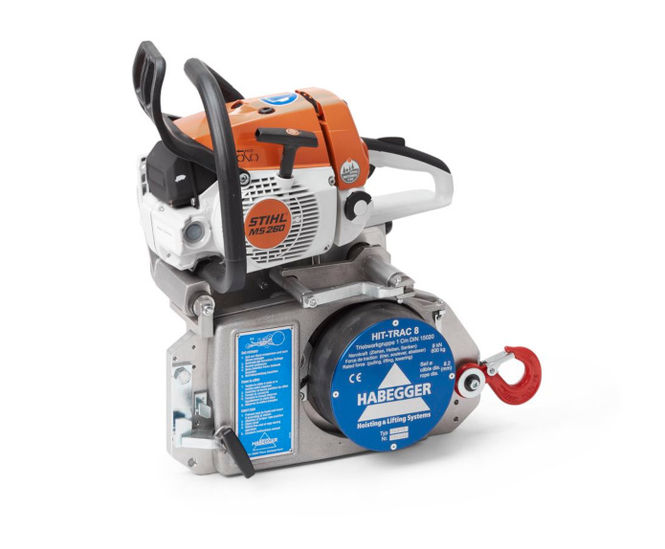

Habegger HIT-TRAC 8B

Super light power-driven rope pulling machine for lifting, pulling and lowering with unlimited rope strength.

Technical data

  • Rated force (pulling, lifting, lowering): 800kg
  • Overload protection by sliding clutch: at approx 20% overload
  • Rope speed: approx 10m/min
  • Rope length: unlimited
  • Weight including engine: 30kg
  • Rope diameter: 8.2mm
  • Effective rope breaking load: 50kN
  • Drive motor: STIHL 260
  • Power: 2.6kW

Habegger HIT-TRAC 8E

Super light power-driven rope pulling machine for lifting, pulling and lowering with unlimited rope length.

Technical data

  • Rated force (pulling, lifting, lowering): 800kg
  • Overload protection through current limit:; at approx 20% overload
  • Rope speed: 1-6m/min
  • Rope length: unlimited
  • Weight including engine: 32kg
  • Rope diameter: 8.2kg
  • Effective rope breaking load: 50kN
  • Electric driver motor: 50 Hz / 230 V, 10A
  • Power: 1kW
  • Intermittent duty: 30%

Habegger HIT-TRAC 16B

High-performing rope pulling machine for heavier loads with unlimited rope length and a gasoline engine. This machine allows for loads to be lowered manually.

Technical data

  • Rated force (pulling, lifting, lowering): 1600kg
  • Overload protection by sliding clutch: at approx 20% overload
  • Rope speed: max 10m/min
  • Rope length: unlimited
  • Weight including engine: 44kg
  • Rope diameter: 11.2mm
  • Effective rope breaking load: 80kN
  • Drive motor 2-stroke engine: STIHL MS 660
  • Power: 5.2kW / 7.1 PS

Habegger HIT-TRAC 16E

With electric motor - lifts and lowers loads smoothly at the push of a button.

Technical data

  • Rated force (pulling, lifting, lowering): 1600kg
  • Overload protection by thermocouple: yes
  • Rope speed: about 10m/min
  • Rope length: unlimited
  • Weight including engine: 58kg
  • Rope diameter: 11.2mm
  • Effective rope breaking load: 80 kN
  • 3-phase AC drive motor: 50 Hz / 400 V, 6,8A
  • Power: 3kW
  • Intermittent duty: 30%

Habegger HIT-TRAC 32E

Professional wire rope pulling machine for pulling loads up to 3.2 tonnes directly.

Technical data

  • Rated force (pulling, lifting, lowering): 3200kg
  • Rope speed: max 5m/min
  • Rope length: unlimited
  • Weight including engine: 160kg
  • Rope diameter: 16mm
  • Effective rope breaking load: 194kN
  • 3-phase AC drive motor: 50 Hz / 400 V, 6,8A
  • Power: 3kW
  • Intermittent duty: 30%

Habegger HIT-TRAC 64E

Professional wire rope pulling machine for pulling loads up to 6.4 tonnes directly.

Technical data

  • Rated force (pulling, lifting, lowering): 6400kg
  • Rope speed: max 2.5m/min
  • Rope length: unlimited
  • Weight including engine: 240kg
  • Rope diameter: 20mm
  • Effective rope breaking load: 300kN
  • 3-phase AC drive motor: 50 Hz / 400 V, 6,8A
  • Power: 3kW
  • Intermittent duty: 30%

Habegger HIT-TRAC 128E

Professional wire rope pulling machine for pulling loads up to 12.8 tonnes directly.

Technical data

  • Rated force (pulling, lifting, lowering): 12,800kg
  • Rope speed: max 2.5m/min
  • Rope length: unlimited
  • Weight including engine: 860kg
  • Rope diameter: 28mm
  • Effective rope breaking load: 640kN
  • 3-phase AC drive motor: 50 Hz / 400 V, 15,1A
  • Power: 7.5kW
  • Intermittent duty: 100%


A range of powered winches is available.

Habegger HIT-TRAC 8B

Super light power-driven rope pulling machine for lifting, pulling and lowering with unlimited rope strength.

Technical data

  • Rated force (pulling, lifting, lowering): 800kg
  • Overload protection by sliding clutch: at approx 20% overload
  • Rope speed: approx 10m/min
  • Rope length: unlimited
  • Weight including engine: 30kg
  • Rope diameter: 8.2mm
  • Effective rope breaking load: 50kN
  • Drive motor: STIHL 260
  • Power: 2.6kW

Habegger HIT-TRAC 8E

Super light power-driven rope pulling machine for lifting, pulling and lowering with unlimited rope length.

Technical data

  • Rated force (pulling, lifting, lowering): 800kg
  • Overload protection through current limit:; at approx 20% overload
  • Rope speed: 1-6m/min
  • Rope length: unlimited
  • Weight including engine: 32kg
  • Rope diameter: 8.2kg
  • Effective rope breaking load: 50kN
  • Electric driver motor: 50 Hz / 230 V, 10A
  • Power: 1kW
  • Intermittent duty: 30%

Habegger HIT-TRAC 16B

High-performing rope pulling machine for heavier loads with unlimited rope length and a gasoline engine. This machine allows for loads to be lowered manually.

Technical data

  • Rated force (pulling, lifting, lowering): 1600kg
  • Overload protection by sliding clutch: at approx 20% overload
  • Rope speed: max 10m/min
  • Rope length: unlimited
  • Weight including engine: 44kg
  • Rope diameter: 11.2mm
  • Effective rope breaking load: 80kN
  • Drive motor 2-stroke engine: STIHL MS 660
  • Power: 5.2kW / 7.1 PS

Habegger HIT-TRAC 16E

With electric motor - lifts and lowers loads smoothly at the push of a button.

Technical data

  • Rated force (pulling, lifting, lowering): 1600kg
  • Overload protection by thermocouple: yes
  • Rope speed: about 10m/min
  • Rope length: unlimited
  • Weight including engine: 58kg
  • Rope diameter: 11.2mm
  • Effective rope breaking load: 80 kN
  • 3-phase AC drive motor: 50 Hz / 400 V, 6,8A
  • Power: 3kW
  • Intermittent duty: 30%

Habegger HIT-TRAC 32E

Professional wire rope pulling machine for pulling loads up to 3.2 tonnes directly.

Technical data

  • Rated force (pulling, lifting, lowering): 3200kg
  • Rope speed: max 5m/min
  • Rope length: unlimited
  • Weight including engine: 160kg
  • Rope diameter: 16mm
  • Effective rope breaking load: 194kN
  • 3-phase AC drive motor: 50 Hz / 400 V, 6,8A
  • Power: 3kW
  • Intermittent duty: 30%

Habegger HIT-TRAC 64E

Professional wire rope pulling machine for pulling loads up to 6.4 tonnes directly.

Technical data

  • Rated force (pulling, lifting, lowering): 6400kg
  • Rope speed: max 2.5m/min
  • Rope length: unlimited
  • Weight including engine: 240kg
  • Rope diameter: 20mm
  • Effective rope breaking load: 300kN
  • 3-phase AC drive motor: 50 Hz / 400 V, 6,8A
  • Power: 3kW
  • Intermittent duty: 30%

Habegger HIT-TRAC 128E

Professional wire rope pulling machine for pulling loads up to 12.8 tonnes directly.

Technical data

  • Rated force (pulling, lifting, lowering): 12,800kg
  • Rope speed: max 2.5m/min
  • Rope length: unlimited
  • Weight including engine: 860kg
  • Rope diameter: 28mm
  • Effective rope breaking load: 640kN
  • 3-phase AC drive motor: 50 Hz / 400 V, 15,1A
  • Power: 7.5kW
  • Intermittent duty: 100%





Downloads
  • Habegger HIT TRAC 8E winch
    Habegger HIT TRAC 8E winch
    1pp 852.16KB
    Download
  • Habegger HIT TRAC 8B winch
    Habegger HIT TRAC 8B winch
    1pp 981.89KB
    Download
  • Habegger HIT TRAC 16B winch
    Habegger HIT TRAC 16B winch
    1pp 1007.86KB
    Download
  • Habegger HIT TRAC 32E, 64E, 128E winch
    Habegger HIT TRAC 32E, 64E, 128E winch
    1pp 1.34MB
    Download
  • Habegger HIT TRAC 16E winch
    Habegger HIT TRAC 16E winch
    1pp 2.05MB
    Download
