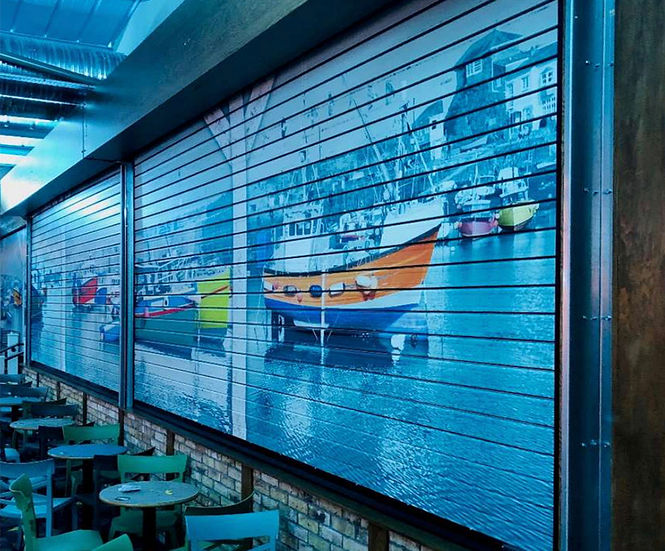

Sonaroll acoustic roller shutters act as a secure, weatherproof closure with high thermal and acoustic insulation values with sound reduction up to 27 dB Rw.

Key attributes

  • High level of acoustic insulation

  • Thermal properties

  • Bespoke, compact design

Performance characteristics

  • Sound reduction: 22dB RW (single curtain); 33dB RW (double curtain)

  • Thermal resistance: 1.1W/(m²K) at centre; 3.2W/(m²K) at quirks

  • Resistance to windload: Class 5

Manufacture

Shutter curtains are made from 100mm continuously interlocked galvanised steel laths held in place by end locks. Each lath is infilled with acoustic material and has a bottom rail with a rubber seal.

Vertical rolled steel guides in a double rebate are fitted with twin, full-height brush seals and supplied with suitable angles for fixing to the structure.

Operation

Operated by a 400-volt, 3-phase geared motor mounted on one of the endplates.

Adjustable limit switches are incorporated to stop the shutter at the end of each travel, and a safety brake is incorporated in line with current health and safety legislation.

Options

  • Key switches

  • Radio controls

  • Loop detectors

  • Photocells

  • Timer closing

  • Polyester powder-coated or Colorcoat HP 200 finishes

  • Hoods

  • Fascias

  • Double-glazed vision panels
