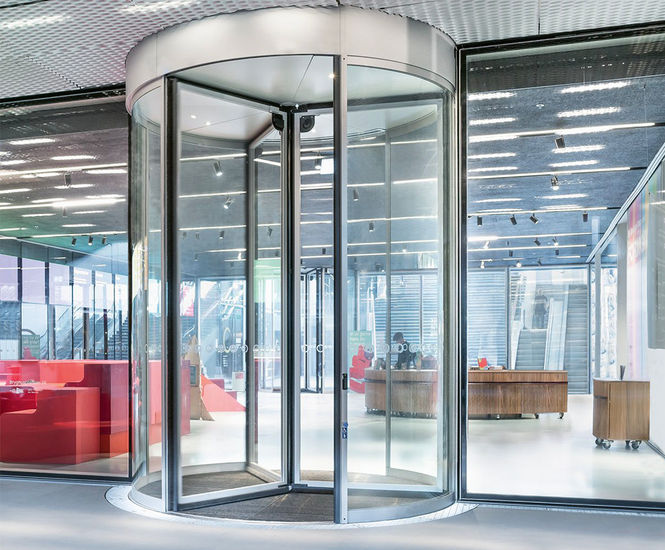

TORMAX T5 Series revolving door systems are automatic entrance solutions designed for high-traffic buildings, combining energy efficiency with a strong central pillar and integrated break-out system. Suitable for large door diameters, these doors help reduce heat loss and gain, and support safe emergency access.

  • Automatic revolving door system for busy public and commercial entrances
  • Central pillar made from steel for increased strength
  • Integral mechanical break-out function for emergency escape routes
  • Electro-mechanical windbrake for secure door leaf positioning
  • Night closure with locks and internal guidance to prevent dirt build-up
  • Integral air curtain to reduce drafts
  • Optional illuminated display case in the centre of the door

Applications

  • Hotels
  • Administration buildings
  • Shopping malls
  • Exhibition and conference centres
  • Multiplex cinemas
  • Railway stations
  • Airport buildings
  • Sports facilities
  • Hospitals

Dimensions

Door diameters from 3.6 to 7.4 m

Visible aluminium door leaf profile 76 x 76 mm

Visible drum wall profiles: upper 73 mm, lower 105 mm

Crown compartment from 500 mm

Materials

Central pillar made from steel

Door leaf profile made from aluminium

Options and variations

Available with 3 or 4 leaves

Classic, Contour, and Infinite types

Classic large and small versions
