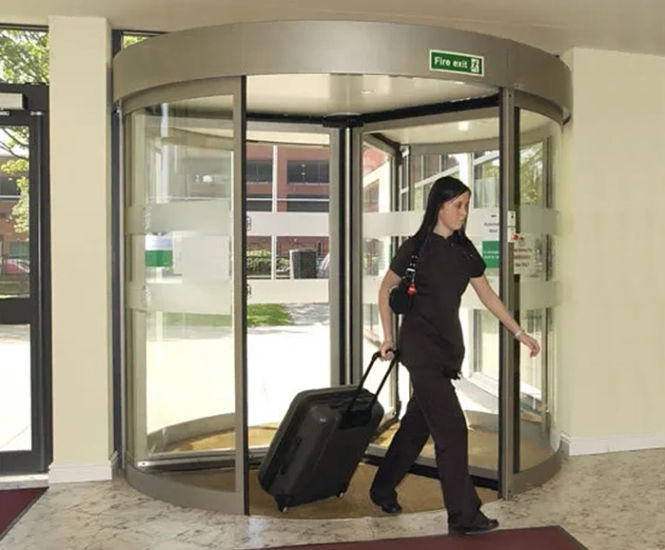

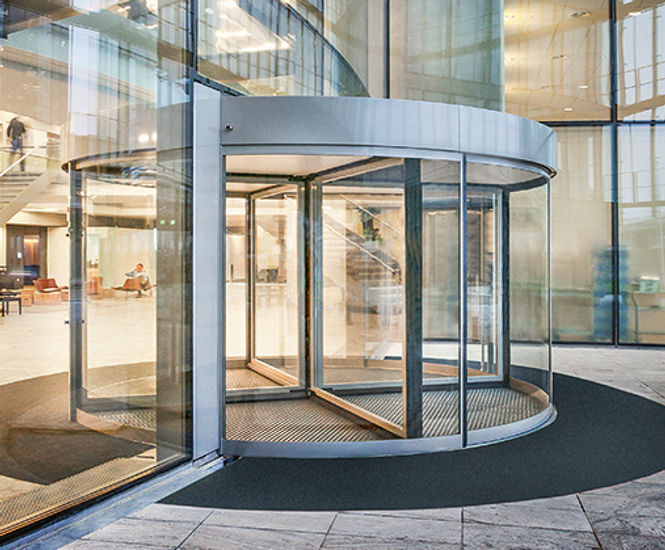

CLASSIC (CL) small automatic revolving doors provide an energy efficient entrance system that works to combat heat loss in winter and heat gain in the summer. They are particularly suitable for areas of high traffic densities.

CLASSIC small automatic revolving doors have a traditional design with aluminium profile closures, visible drum wall profiles, a crown compartment from 250mm and a drive system located in the ceiling.

Suitable for door diameters from 1.6 to 7.4 metres, these systems support 2, 3, or 4 leaves and integrate access control and emergency functions.

  • Automatic revolving door system for high-traffic entrances

  • Supports access control with anti-piggybacking and anti-tailgating functions

  • Break-out function for emergency escape routes

  • Windbreak and night closure functions for improved comfort and security

  • Integral air curtain reduces drafts

  • Display case option for entrances 4.2 metres and above

  • Classic design with aluminium profiles and visible drum wall profiles

Applications

  • Hotels

  • Administration buildings

  • Shopping malls

  • Exhibition and conference centres

  • Multiplex cinemas

  • Railway stations

  • Airport buildings

  • Sports facilities

  • Hospitals

Dimensions

Door diameters from 1.6 to 7.4 metres

Aluminium profile closures 56 x 56 mm (= 4000 mm Ø: 76 x 76 mm)

Visible drum wall profiles: upper 73 mm, lower 105 mm

Crown compartment from 250 mm

Options and variations

2, 3, or 4 leaves

Drive located in roof, floor, or ceiling of room under the door

Display case (illuminated, for doors = 4.2 metres diameter)

Performance

Mechanical emergency opening system for break-out function

Electro-mechanical locking for windbreak function

Integral air curtain

Materials

Made from aluminium profiles
