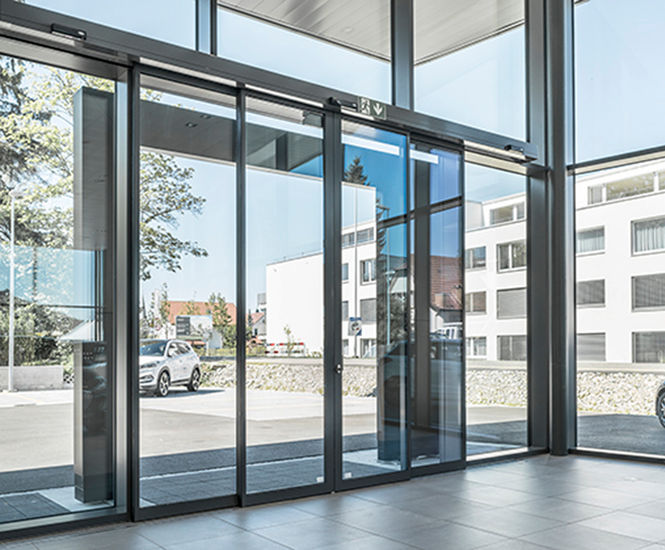

TORMAX T2 Series telesopic automatic sliding door systems are made for effortless, contactless access in a wide range of buildings. Designed for both new construction and retrofitting, these doors support various opening types and sizes, with options for linear, telescopic, curved, and angular configurations. Distinctive profiles include lightweight, thermally separated, and full-glass solutions.

They are available left opening, right opening or bi-parting and can be installed as part of new-build projects or retro-fitted to existing structures.

  • Automatic sliding door system for easy, contact-free entry

  • Multiple profile options for single, double, or triple glazing

  • Thermally separated profiles help reduce energy loss

  • Supports large opening widths up to 3800 mm

  • Sealed sliding leaves for improved insulation and safety

  • Compatible with access control and building automation

  • Meets CEN and DIN safety standards

Applications

  • Office buildings

  • Shops and convenience stores

  • Apartment blocks

  • Hotels and restaurants

  • Care homes and hospitals

  • Conference centres

  • Exhibition buildings

Dimensions

Opening width 700–3800 mm (single side), 1400–3800 mm (both sides)

Profile facial width 22–35 mm

Profile base height 78–85 mm

Profile depth 20–40 mm

Glass thickness 6–32 mm

Performance

Sliding leaves sealed at top and sides

Safety distance = 8 mm between sliding and fixed leaves

Materials

Made from aluminium profiles and toughened or laminated safety glass

Options and variations

Linear, telescopic, curved, angular, and multi-functional sliding doors

Lightweight, thermally separated, and full-glass profiles

Four profiles are available: LR12; LR 22B; LR 32THERM lightweight profiles; full-glass.

Accreditations

Conforms to CEN safety standards and DIN 18650
