Lang+Fulton Micro architectural gratings are designed for vertical applications, using flat horizontal bearing bars and plain round bars to create a distinctive lateral aesthetic.

The Micro range includes Micro-15, Micro-25, and Micro-34, each with specific mesh sizes and panel dimensions. These gratings are suitable for balustrades and rooftop plant screening, with narrow bar spacing for diffused visual screening.

Panels are custom-sized, framed, and supplied fully finished with bracket fixings or holes for bolting into a secondary framework.

Features and benefits

  • Distinctive lateral aesthetic from flat horizontal bearing bars and plain round bars

  • Diffused visual screening due to narrow bar spacing

  • Custom-sized framed panels

  • Panels engineered for pedestrian barrier loadings up to 3m span (BS EN 1991-1-1)

  • Alternative bearing bar sections available on request

Applications

  • Balustrades (Micro-34)

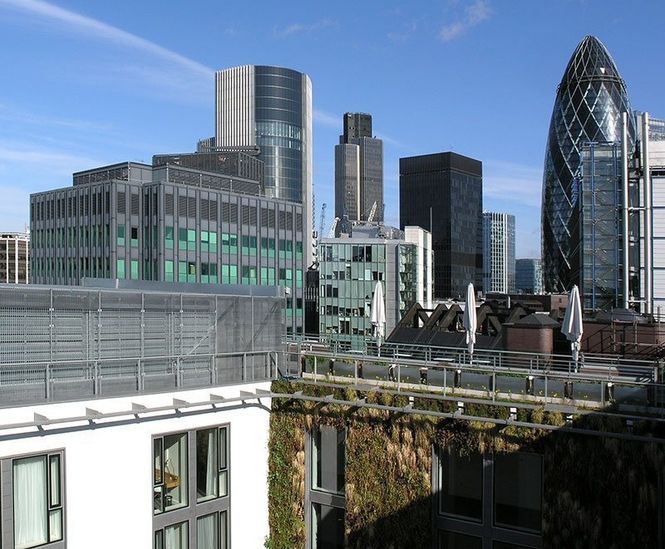

  • Rooftop plant screening (Micro-15 and Micro-25)

  • Other vertical architectural applications

Physical attributes

Micro-34: mesh 34×100 mm; maximum panel size 1543×3000 mm (height × width); bearing bar 25×3 mm
Micro-25: mesh 25×76 mm; maximum panel size 1200×3000 mm (height × width); bearing bar 25×2 mm
Micro-15: mesh 15×76 mm; maximum panel size 1000×3000 mm (height × width); bearing bar 25×2 mm

Materials

Made from flat bars and plain round bars

Finish

Hot-dip galvanised or with additional powder coating in any RAL colour

Options and variations

Alternative sections of bearing bar available on request

Installation

Panels supplied fully finished with bracket fixings or holed for bolting into a secondary framework

Performance

Panels can be made to accept horizontal loadings for pedestrian barriers up to a 3m span (BS EN 1991-1-1)
